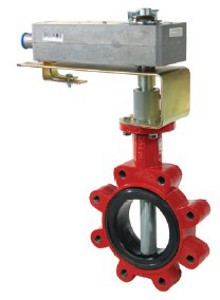

Schneider Electric VAFS-6210-556-L-11 Valve Actuator Assembly 2 in

Product Description

The Schneider Electric VAFS-6210-556-L-11 is a valve actuator assembly that features a two-inch body size. This two-way butterfly valve has a flanged connection style designed for a variety of applications. It is constructed with a ductile iron disc that is nylon coated for durability. The product is rated for a flow coefficient of 144 cv and can handle up to 175 PSI close-off pressure. The actuator is electric and operates on a 24 VAC or 22 to 30 VDC power supply.

• Body Size: 2 inches
• Type: Electric, 2-Position Control
• Torque: 133 in-lb

Product Highlights

This valve assembly is reliable for use in HVAC systems and other fluid control applications. It includes crucial features such as an auxiliary switch and spring return, benefiting maintenance tasks under various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Material Disc: Ductile Iron - Nylon 11 Coated
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
