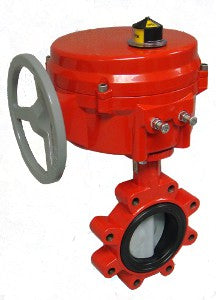

Schneider Electric VAFS-6200-F10-L-15 Valve Actuator Assembly 5 in

Product Description

The Schneider Electric VAFS-6200-F10-L-15 is a valve actuator assembly designed for controlling flow in various applications. This electric actuator is compatible with a butterfly valve design and provides reliable performance in many environments.

• Electric actuator with 2-position control
• Body size of 5 inches with flanged connections
• Flow coefficient of 1376 cv

Product Highlights

This actuator is engineered for efficient flow control in plumbing and HVAC systems. It operates on 24 VAC and features a durable design with a maximum close-off pressure of 175 PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-actuator assembly

Technical Specifications

• Body Size: 5 inches
• Configuration: 2-Way
• Type: Butterfly
• Connection Type: Flanged
• Disc Material: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 1376 cv
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Input Voltage: 24 VAC
• Torque: 600 in-lb
• Protection Rating: NEMA 4
• Operating Temperature: -40 to 121 °C
• Ambient Temperature: -40 to 65.5 °C
• IP Rating: IP56
• Auxiliary Switch: 2 SPDT
