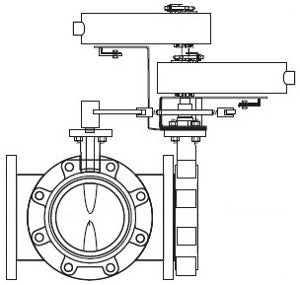

Schneider Electric VAF-632C-556D-L-13 Valve Actuator Assembly 3 in

Product Description

The Schneider Electric VAF-632C-556D-L-13 is a valve actuator assembly designed for efficient control in HVAC applications. This component features a three-inch body size and operates using an electric actuator. It is suitable for mixing and diverting fluids.

• Body Size: 3 inches
• Flow coefficient: 461 cv
• Close-off pressure: 175 PSI

Product Highlights

This valve actuator assembly provides reliable performance for various applications. The dual actuator setup enhances system redundancy and operational reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Body Material: Polyester coated cast iron

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Connection: Flanged
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 133 in-lb
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
• IP Degree of Protection: IP10/IP11
• Actuator Rotation: 100 °
