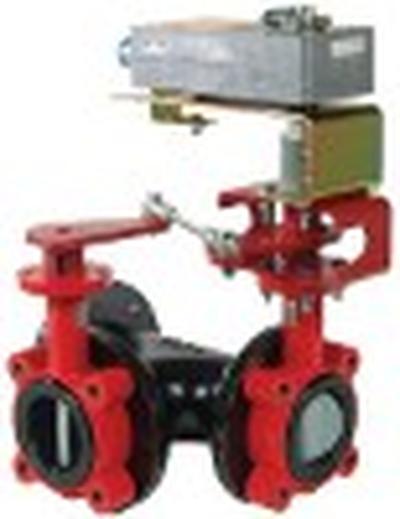

Schneider Electric VAF-632C-556-L-11 Valve Actuator Assembly 2 in

Product Description

Schneider Electric VAF-632C-556-L-11 is a valve actuator assembly designed for various fluid control applications. This product features a two-inch body size and a three-way mixing/diverting configuration. It is suitable for applications requiring reliable control and efficient operation.

• Body Size: 2 inches
• Actuator Type: Electric with spring return
• Torque Rating: 133 in-lb

Product Highlights

This assembly includes a butterfly valve and is ideal for HVAC systems, irrigation systems, and industrial automation where precise valve control is required.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VAF-632C-556-L-11

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Connection Type: Flanged
• Body Material: Polyester coated cast iron
• Flow Coefficient: 144 cv
• Close-Off Pressure: 175 PSI
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Current Consumption: 290 mA
• Material Disc: Ductile Iron - Nylon 11 Coated
• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 1, NEMA 2
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
