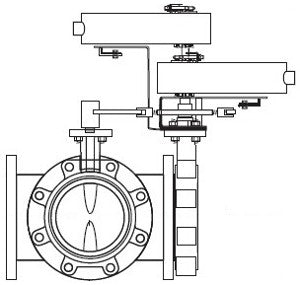

Schneider Electric VAF-631C-556D-L-12 valve-actuator assembly 3-Way Mixing/Diverting

Product Description

The Schneider Electric VAF-631C-556D-L-12 is a valve-actuator assembly designed for fluid control systems. This assembly features a two-and-a-half-inch body size and operates as a three-way mixing and diverting valve. It is built with a flanged connection and a lug body style, making it suitable for various installation requirements.

• Body Size: 2-1/2 inches
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly Valve

Product Highlights

This assembly includes an electric actuator that provides precise control. It features a flow coefficient of two hundred eighty-two, rated for a close-off pressure of one hundred seventy-five PSI. The actuator operates on a power input of twenty-four VAC or twenty-two to thirty VDC, allowing for compatibility with numerous systems. Note that the actuator uses a spring return mechanism and is normally open when power is lost.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Disc Material: Ductile Iron - Nylon 11 Coated
• Torque: 133 in-lb
• Control Signal: 2-Position (On/Off)
• Ambient Air Temperature for Operation: -30 to 60 °C
• Electrical Insulation Class: Class II
• IP Degree of Protection: IP10/IP11
• Operating Fluid Temperature: -40 to 121 °C
• Relative Humidity: 5-95% non-condensing
