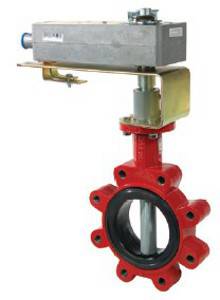

Schneider Electric VAF-6220-556-L-12 Power Butterfly Valve Assembly

Product Description

Schneider Electric VAF-6220-556-L-12 is a butterfly valve assembly designed for efficient flow control. This two way valve has a body size of 2-1/2 inches and flanged connection. It features a full disc shape made of ductile iron with a nylon 11 coating. The valve supports a flow coefficient of 282 cv and can handle a close-off pressure of 175 PSI.

• Body Size: 2-1/2 inches
• Configuration: 2-Way
• Actuator Type: Electric

Product Highlights

The butterfly valve acts as a shutoff mechanism for various applications. It is suitable for use in HVAC systems, water supply lines, and industrial processes.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 133 in-lb
• Electrical Insulation Class: Class II
• Control Type: Automatic reset
• Ambient Air Temperature for Operation: -30 to 60 °C
• Protection Rating: NEMA 1, NEMA 2
• Actuator: Rotary, SmartX Actuator
• Power Consumption: 9.8 VA AC
