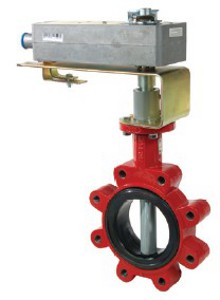

Schneider Electric VAF-6220-556-L-11 Valve Actuator Assembly

Product Description

Schneider Electric VAF-6220-556-L-11 is a valve actuator assembly designed for efficient operation in various valve applications. This assembly features a two-inch body size and operates as a two-way butterfly valve, ideal for controlling fluid flow.

• Body Material: Polyester coated cast iron
• Actuator Type: Electric with a torque of 133 in-lb
• Control Signal: 2-Position (On/Off)

Product Highlights

This valve actuator assembly operates with a close-off pressure of 175 PSI and supports a robust flow coefficient of 144 cv, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 2 in
• Configuration: 2-Way
• Connection: Flanged
• Actuator Type: Electric
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Operating Temperature: -40 to 121 °C
