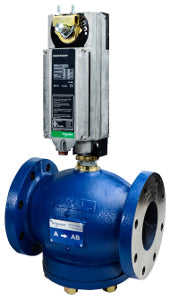

Schneider Electric VA-8213-576-5-15 Valve Actuator Assembly 5 in Replacement MPN

Product Description

Schneider Electric VA-8213-576-5-15 is a valve actuator assembly designed for effective flow control. This unit features a five-inch globe valve with a 2-way configuration. It connects via a flanged connection and utilizes brass material for the trim. The actuator is electric with a two-position control and a spring return for reliability.

• Body Size: 5 inches
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 24 VAC/VDC, 22-30 VDC

Product Highlights

This valve actuator assembly is suitable for managing dampers and globe valves. Its robust design meets various application needs while ensuring efficient operation.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VA-8213-576-5-15

Technical Specifications

• Flow Coefficient: 240 cv
• Close-Off Pressure: 125 PSI
• Torque: 150 in-lb
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -31.6 to 60 °C
• Power Consumption: 5.3 W
• Protection Rating: NEMA 1, NEMA 4
• Weight: 70.534 kg
