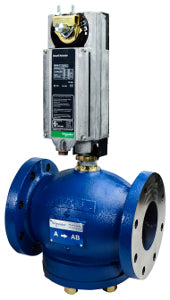

Schneider Electric VA-8213-576-5-14 Valve Actuator Assembly

Product Description

Schneider Electric VA-8213-576-5-14 is a valve actuator assembly designed for efficiency and reliability. This unit features a four-inch globe type configuration and operates as a two-way valve, making it suitable for various applications. It connects via flanged ends and uses an electric actuator, allowing for precise control.

• Electric actuator with spring return feature
• Close-off pressure of 125 PSI
• Flow coefficient of 145 cv

Product Highlights

This valve assembly is engineered for North American specifications, providing dependable performance in HVAC systems and other fluid control applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Size: 4 inches
• Actuator Type: Electric
• Torque: 150 in-lb
• Power Input Voltage: 24 VAC/VDC, 22 to 30 V DC
• Temperature Range: -7 to 138 °C
• Protection Rating: NEMA 1, NEMA 4
• Body Material: Cast iron
• Operating Fluid Temperature: -7 to 138 °C
