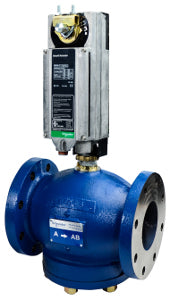

Schneider Electric VA-8213-576-5-13 Valve Actuator Assembly 3 in

Product Description

Schneider Electric VA-8213-576-5-13 is a valve actuator assembly designed for robust performance in various applications. This product features a three-inch body size and a two-way globe configuration. The assembly utilizes a flanged connection type and facilitates a stem flow action that allows for effective control of fluids.

• Body Size: 3 inches
• Flow Coefficient: 85 cv
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC

Product Highlights

This valve actuator assembly is suitable for various environments and includes significant features such as an electric actuator and a spring return mechanism. It offers reliable operation under nominal pressure and temperature conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 125 PSI
• Torque: 150 in-lb
• Protection Rating: NEMA 1, NEMA 4
• Ambient Air Temperature for Operation: -31.6 to 60 °C
• Electrical Insulation Class: Class II
• Operating Fluid Temperature: -7 to 138 °C
• Relative Humidity: 5 to 95 % non-condensing
