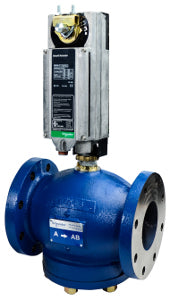

Schneider Electric VA-8213-576-5-12 Valve Actuator Assembly 2-1/2 in Flanged

Product Description

Schneider Electric VA-8213-576-5-12 is a valve actuator assembly designed for reliable control in HVAC and plumbing applications. This product features a two-way globe configuration with a flanged connection. This assembly is suitable for controlling the flow of fluids and is engineered for efficient operation.

• Body Size: 2-1/2 inches
• Torque: 150 in-lb
• Actuator Type: Electric with Manual Override

Product Highlights

This valve actuator supports a variety of operational functions and is compatible with SmartX Actuators.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Flow Coefficient: 56 cv
• Close-Off Pressure: 125 PSI
• Power Input Voltage: 24 VAC/VDC, 22-30 VDC
• Protection Rating: NEMA 1, NEMA 4
• Material Trim: Brass
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -31.6 to 60 °C
