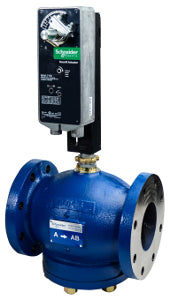

Schneider Electric VA-8213-556-5-16 valve actuator assembly

Product Description

The Schneider Electric VA-8213-556-5-16 is a valve actuator assembly designed for reliable performance in various applications. This model features a six-inch body size and a two-way globe configuration. It is ideal for use in systems requiring precise control of fluid flow.

• Body size: six inches
• Configuration: two-way
• Actuator type: electric

Product Highlights

Designed for effective control in HVAC and plumbing systems, this actuator supports a range of operating conditions including ambient temperatures from negative thirty to sixty degrees Celsius. It has a close-off pressure rating of one hundred twenty-five PSI and a flow coefficient of three hundred seventy CV.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: cast iron
• Power Input Voltage: twenty-four VAC/VDC, twenty-two to thirty VDC
• Torque: one hundred thirty-three in-lb
• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: negative seven to one hundred thirty-eight degrees Celsius
• Current Consumption: two hundred ninety mA
• Motor Type: brushless DC motor
