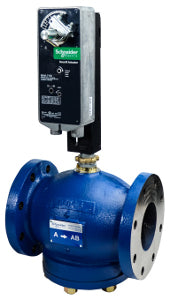

Schneider Electric VA-8213-556-5-15 Valve Actuator Assembly 5 in

Product Description

Schneider Electric VA-8213-556-5-15 is a valve actuator assembly designed for reliable control in various applications. This device features a five-inch body size and operates as a two-way globe valve. With flanged connections, it provides a secure fit for seamless integration into existing systems.

• Body Size: 5 inches
• Configuration: 2-Way
• Power Input: 24 VAC/VDC, 22-30 VDC

Product Highlights

The VA-8213-556-5-15 valve actuator assembly is built with durable brass and cast iron materials to withstand demanding operating conditions. It features an electric actuator with a control signal for automated operations.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 240 cv
• Close-Off Pressure: 125 PSI
• Torque: 133 in-lb
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
• Relative Humidity: 5-95% non-condensing
• Electrical Insulation Class: Class II
• Actuator Type: Rotary
• Power Consumption: 9.8 VA AC
• Current Consumption: 290 mA
• Valve Connection Size: 5 inches
