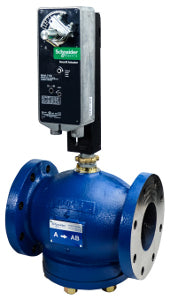

Schneider Electric VA-8213-556-5-14 Valve Assembly 4 in Globe Valve

Product Description

The Schneider Electric VA-8213-556-5-14 is a 4-inch globe valve assembly designed for reliable operation in various applications. This valve features electric actuation and a two-way configuration.

• Body Size: 4 inches
• Material: Brass and cast iron
• Torque: 133 in-lb

Product Highlights

This valve provides effective flow control and is suitable for use in HVAC systems, process control, and other fluid management tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 2-Way
• Actuator Type: Electric, Spring Return, Normally Open
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Close-Off Pressure: 125 PSI
• Flow Coefficient: 145 cv
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95% non-condensing
• Protection Rating: NEMA 1, NEMA 2
• Weight: 48.308 kg
