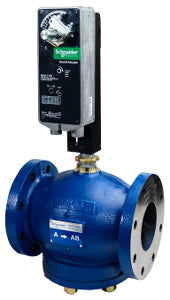

Schneider Electric VA-8213-556-5-13 Valve Actuator Assembly

Product Description

The Schneider Electric VA-8213-556-5-13 is a valve actuator assembly designed for automotive applications and control operations. This actuator offers a robust design with a body size of three inches and features a two-way globe valve configuration. It is equipped with a flanged connection and operates with an electric actuator. The assembly is tailored for use in various environments including HVAC and industrial control systems.

• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 133 in-lb
• Operating Fluid Temperature: minus seven to one hundred thirty-eight degrees Celsius

Product Highlights

This actuator assembly is suitable for automatic control applications, boasting an efficient electric actuator with a spring return feature. It integrates easily into various systems, ensuring reliable operation under different environmental conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way Globe
• Flow Coefficient: 85 cv
• Close-Off Pressure: 125 PSI
• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 1, NEMA 2
• Current Consumption: 290 mA
• Power Consumption in W: 7.5 W
• Duty Cycle: Continuous
