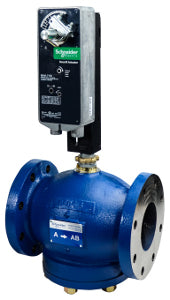

Schneider Electric VA-8213-556-5-12 Valve Actuator Assembly 2-Way 125 PSI

Product Description

The Schneider Electric VA-8213-556-5-12 is a valve actuator assembly designed for efficient control of fluid flow. This product features a two-way globe configuration suitable for various applications, including butterfly valves and dampers.

• Body Size: Two and one-half inches
• Actuator Type: Electric
• Control Signal: Two-position (On/Off)

Product Highlights

This actuator offers reliable performance with robust construction, ideal for both heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 56 cv
• Close-Off Pressure: 125 PSI
• Voltage Input: 24 VAC/VDC, 22 to 30 VDC
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Material Trim: Brass
• Body Material: Cast iron
• Motor Type: Brushless DC motor
• Power Consumption: 9.8 VA AC
• Current Consumption: 290 mA
