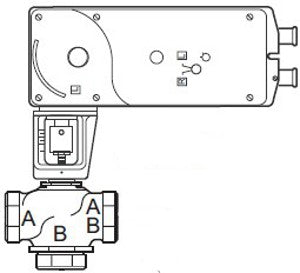

Schneider Electric VA-7313-593-4-09 Globe Valve Assembly 1-1/4 in 3W Mix NPT

Product Description

The Schneider Electric VA-7313-593-4-09 is a reliable globe valve assembly designed for efficient flow control in various applications. This valve features a body size of one and one-quarter inches and supports a three-way mixing configuration. The NPT connection ensures a secure fit for easy installation.

• Body Material: Bronze
• Power Input Voltage: 24 VAC/VDC
• Maximum Close-Off Pressure: 150 PSI

Product Highlights

This valve operates with a linear actuator and has a force rating of two hundred twenty lbf. It includes a two-position electric control signal for reliable operation. The compact design supports installation in tight spaces while maintaining high performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 20 cv
• Stem Flow Action: Stem down flow A to AB
• Control Type: Automatic reset
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Relative Humidity: 15-95% non-condensing
• Seat Material: Bronze
• Seating Seal Material: EPDM (Port A)
