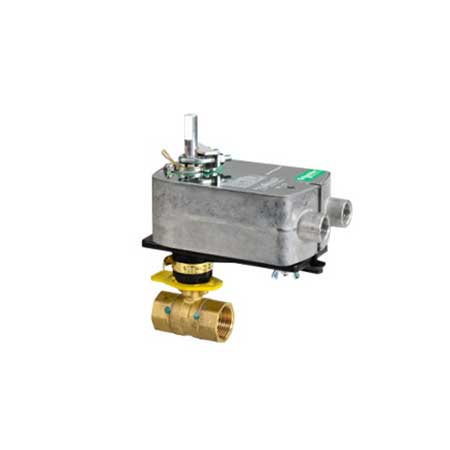

Schneider Electric VA-2253-527-9-21 Ball Valve Assembly 1 in 2-way Replacement MPN

Product Description

Schneider Electric VA-2253-527-9-21 is a ball valve assembly designed for HVAC and plumbing applications. The valve has a body size of one inch and features a two-way configuration. It operates with an electric actuator, allowing for precise control in various systems.

• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 100 PSI
• Power Input Voltage: 24 VAC or 22 to 30 VDC

Product Highlights

This ball valve assembly is suitable for applications that require stable flow control. It features a spring return mechanism and a normally closed position for safety. Ensure it is not used with steam.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 2-Way
• Material Trim: Stainless Steel
• Actuator Type: Electric
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Device Application: Dampers, Globe Valve
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature For Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
• Body Material: Forged Brass
