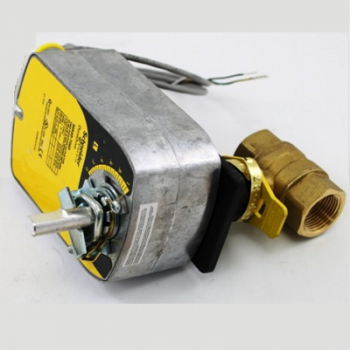

Schneider Electric VA-2213-532-9-27 Valve Assembly

Product Description

Schneider Electric VA-2213-532-9-27 is a reliable valve assembly designed for use in various fluid control applications. This assembly features a one-inch body size and a durable two-way ball valve configuration.

• Body Material: Brass
• Flow Coefficient: 54.2 cv
• Power Input Voltage: 120 VAC

Product Highlights

This valve assembly is constructed to manage flow effectively while ensuring durability and reliability in performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1 inch
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Flow Coefficient: 54.2 cv
• Close-Off Pressure: 100 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Power Input Voltage: 120 VAC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
• Power Consumption: 4.3 VA AC
