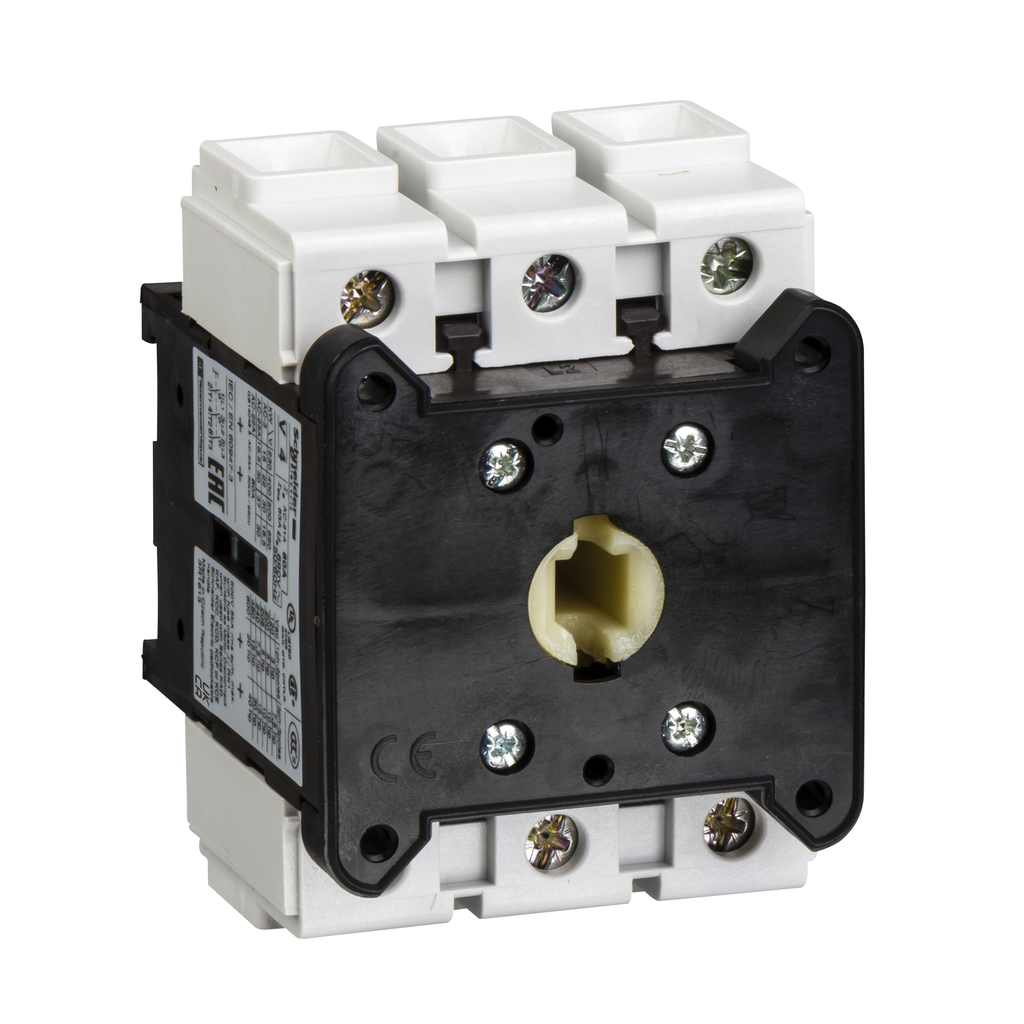

Schneider Electric V4 Square D V4 20 x 60 mm 600 Volt 63 Amp 3-Pole Manual Motor Control Switch Body

Product Description

The Schneider Electric V4 is a 3-pole switch body designed for the TeSys Vario switch-disconnector. With a rating of eighty amps at six hundred ninety volts, this product serves motor applications up to thirty kilowatts at four hundred volts AC-23. It requires an accompanying handle and extension shaft to operate as a main or emergency stop switch-disconnector. Technically versatile, add-on modules such as main pole, neutral pole, earthing module, and auxiliary contacts can finalize the setup.

• Multi-standards certified including IEC, UL, CSA and more
• Green Premium compliant with RoHS/REACH
• Mounting dimensions: two point five six inches by six inches

Product Highlights

This switch body is suitable for various environments and applications, ensuring operational safety and compliance with numerous international standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: V4
• Voltage: 690 Volt
• Wattage: Up to 30 kW at rated voltages
• Amperage: 63 Amp AC-23 UE at 400 V
• Depth: 65 mm
• Width: 60 mm
• Height: 83 mm
• Weight: 1.10 lb
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• Interrupt Rating: 640 AIC
• Operating Cycles: 30000 cycles
• Contact Configuration: 3 NO
