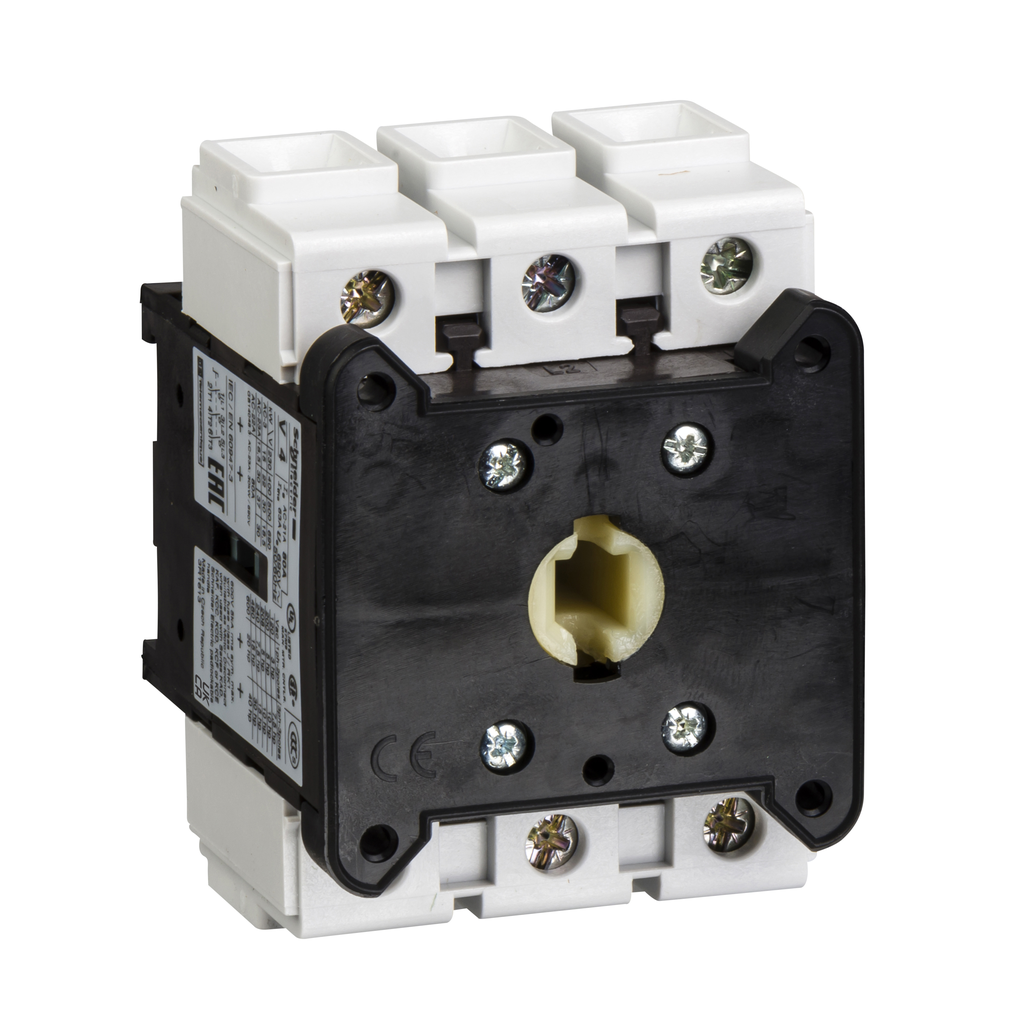

Schneider Electric V3 Square D 20 x 60 mm 600 Volt 45 Amp 3-Pole Manual Motor Control Switch Body

Product Description

The Schneider Electric V3 is a three-pole switch body designed for use with the TeSys Vario switch-disconnector. It is rated at sixty-three amperes and six hundred volts. This switch can handle motor applications up to twenty-two kilowatts at four hundred volts AC-23. The switch must be paired with a handle and an extension shaft to function as a main or emergency stop switch-disconnector. Further, add-on modules including main pole, neutral pole, earthing module, and auxiliary contacts can enhance the assembly.

• Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine)
• Green Premium compliant (RoHS/Reach)
• Available worldwide

Product Highlights

This switch body is suitable for various industrial applications and is ideal for motor control in safety switches.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: V3
• Voltage Rating: 690 Volt
• Amperage: 41.5 Amp AC-23 UE: 400 V
• Wattage: 11 kW 230...240 Volt AC-3)-22 kW 500 Volt AC-3)-22 kW 690 Volt AC-23 Amps)
• Depth: 65 mm
• Width: 60 mm
• Height: 83 mm
• Weight: 1.10 lb
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• Operating Temperature: -41 to 122 degrees F (-205 to 50 degrees C)
