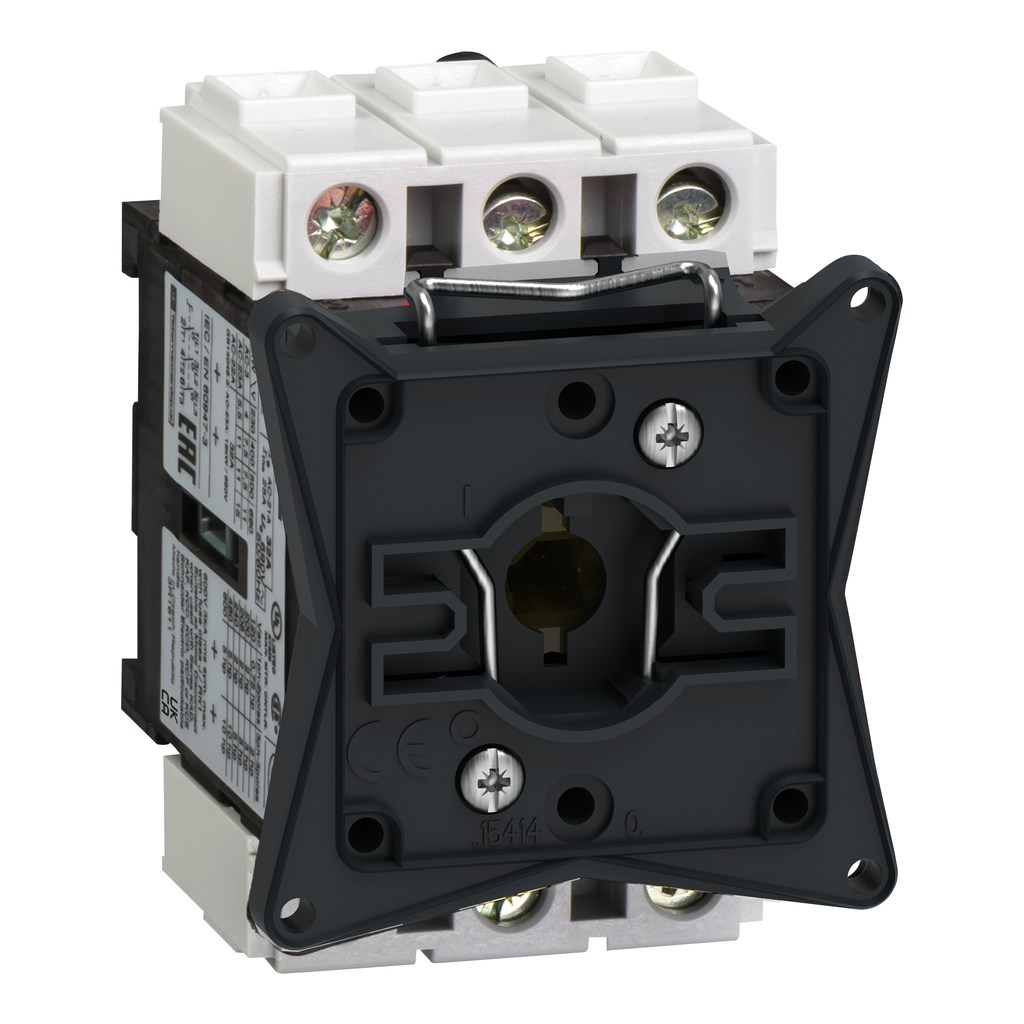

Schneider Electric V2 Square D 15 x 60 mm 600 Volt 25 Amp 3-Pole Manual Motor Control Switch Body

Product Description

Schneider Electric V2 is a three-pole manual motor control switch body. It is rated for forty amps and operates at six hundred volts. The switch is appropriate for motor applications up to fifteen kilowatts at four hundred volts AC-23. It requires a handle and extension shaft to be used as either a main or emergency stop switch-disconnector.

• Dimensions: Two point thirty-six inches depth, sixty millimeters width, seventy-four millimeters height.
• Country of Origin: Czech Republic.
• Multiple certifications: IEC, UL, CSA, CCC, EAC, Marine.

Product Highlights

The V2 switch is designed for use in various motor control applications, ensuring operational safety through its robust build and compliance with international standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: V2

Technical Specifications

• Voltage: 690 Volt
• Amperage: 29 Amp AC-23 UE: 400 V
• Wattage: 11 kW at 400...415 Volt AC-3
• Weight: 0.44 lb
• Number of Poles: 3 Pole
• Certifications: CCC, CSA, UL, UKCA
• Operating Temperature: -4122 degrees F (-2050 degrees C)
• Warranty Length: 18 months
