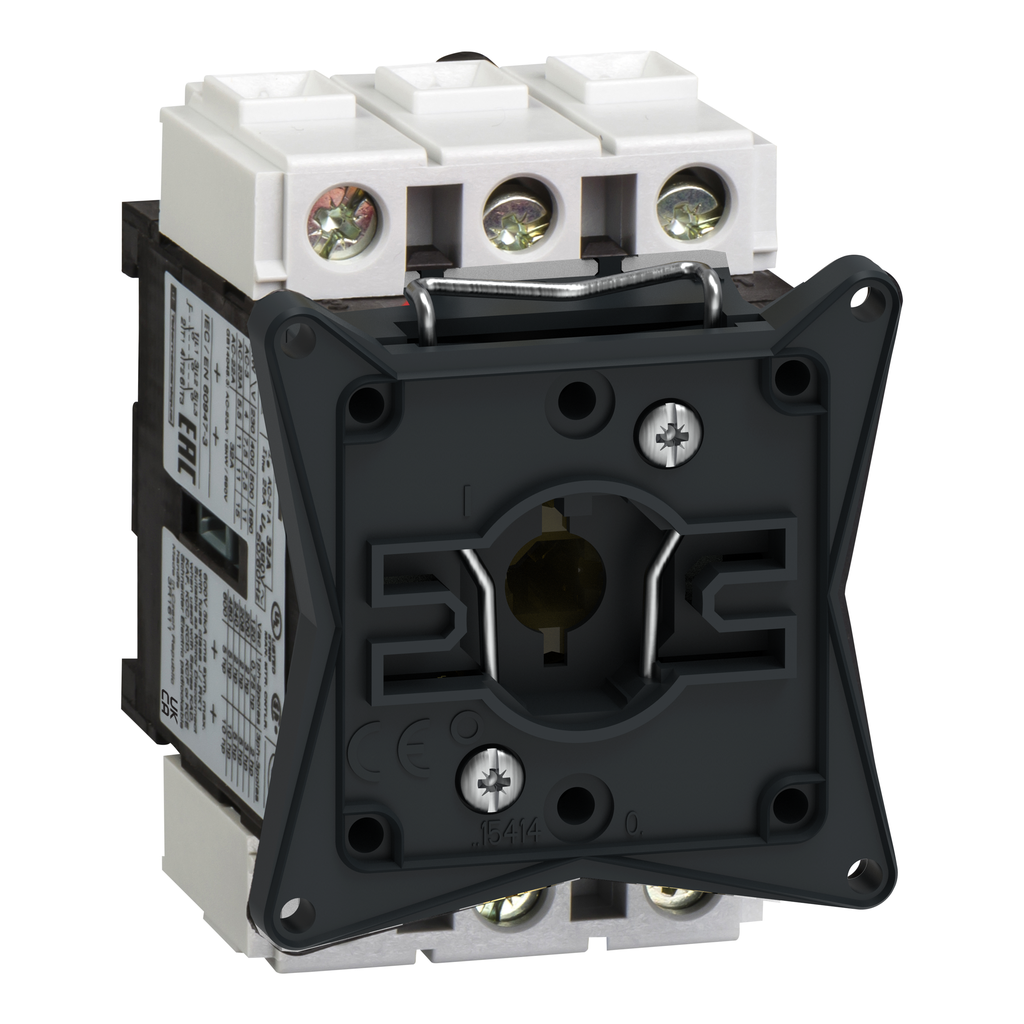

Schneider Electric V1 Square D 3-Pole Manual Motor Control Switch Body 600 Volt 20 Amp

Product Description

The Schneider Electric V1 is a three-pole switch body designed for the TeSys Vario switch-disconnector. It is rated for 32 Amps and 690 Volts, suitable for motor applications up to eleven kilowatts at four hundred volts with AC-23. This device must be equipped with a handle and extension shaft to serve as either a main or emergency stop switch-disconnector. Add-on modules such as main poles, neutral poles, earthing modules, and auxiliary contacts can enhance its functionality. It is globally available and certified under multiple standards including IEC, UL, CSA, CCC, EAC, and Marine, and is compliant with Green Premium standards (RoHS/Reach).

• Three-pole configuration
• Used in motor applications up to eleven kilowatts
• Certified to multiple international standards

Product Highlights

This switch body can be customized with additional modules for various configurations and applications.

Product Information

Standard Information

• Catalog Number: V1
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Amperage: 32 Amp
• Wattage: 11 kW
• Number of Poles: 3
• Country of Origin: Germany
• Operating Temperature: -4122 degrees F
• Enclosure Rating: IP20
• Warranty Length: 18 months
