Schneider Electric V0 Square D 15 x 60 mm 600 Volt 20 Amp 3-Pole Manual Motor Control Switch Body

Product Description

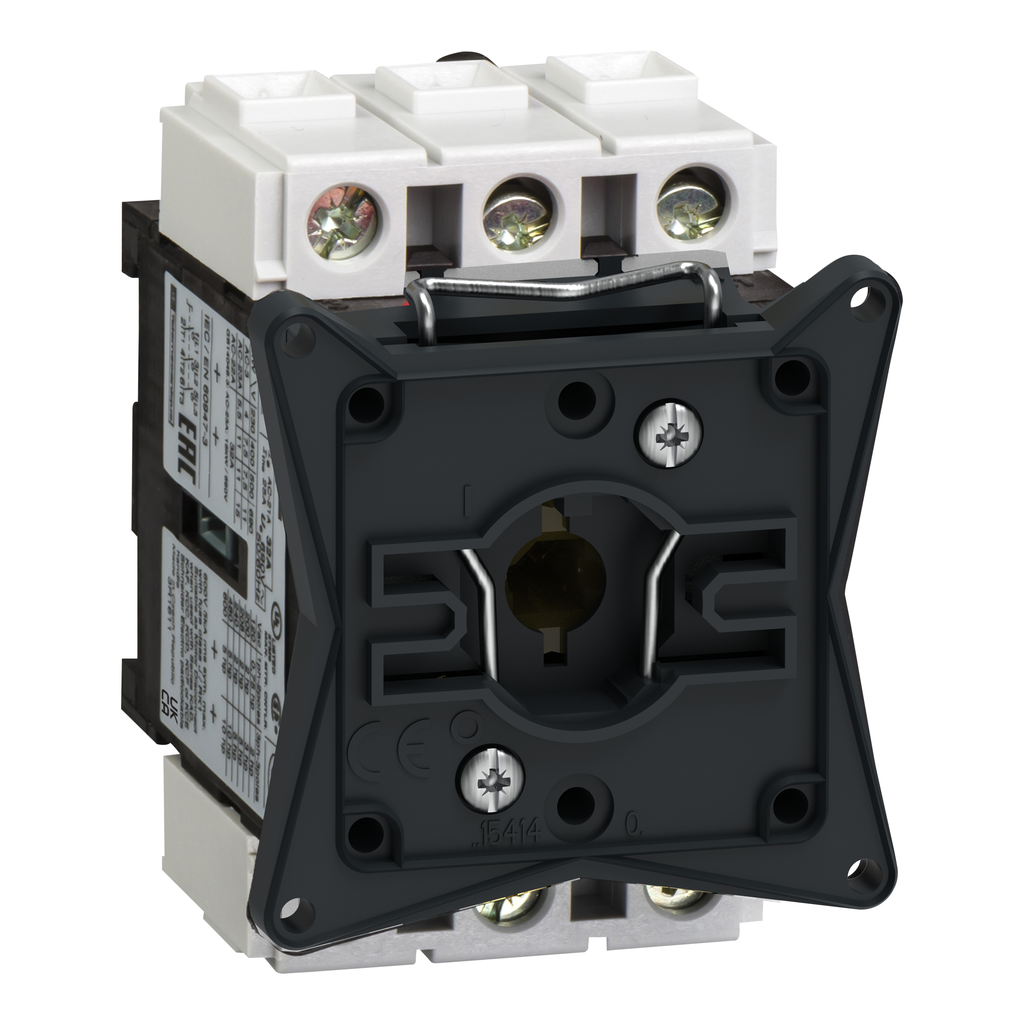

Schneider Electric V0 is a three-pole switch body designed for the TeSys Vario switch-disconnector. This switch body has a rating of twenty-five amps and can handle up to six hundred ninety volts. It is suitable for motor applications reaching up to seven point five kilowatts at four hundred volts in AC-23 configurations. The assembly requires a handle and extension shaft to function as a main or emergency stop switch-disconnector. You can enhance this setup with add-on modules, including the main pole, neutral pole, earthing module, and auxiliary contacts. This product has global availability and meets multiple standards including IEC, UL, CSA, CCC, EAC, and Marine certifications while being Green Premium compliant.

• Operating Temperature: -41 to 122 degrees Fahrenheit
• Interrupt Rating: 200 AIC
• Operating Cycles: 30000 cycles DC-1

Product Highlights

Reliable manual motor control switch for industrial applications.

Product Information

Standard Information

• Catalog Number: V0
• Manufacturer: Schneider Electric

Technical Specifications

• GTIN: 03389110551686
• Voltage: 690 Volt
• Wattage: 11 kW
• Amperage: 14.5 Amp
• Weight: 0.44 lb
• Dimensions: Width 2.17 in, Depth 60 mm, Height 74 mm
• Enclosure Rating: IP20
• Certification: CCC, CSA, UL
