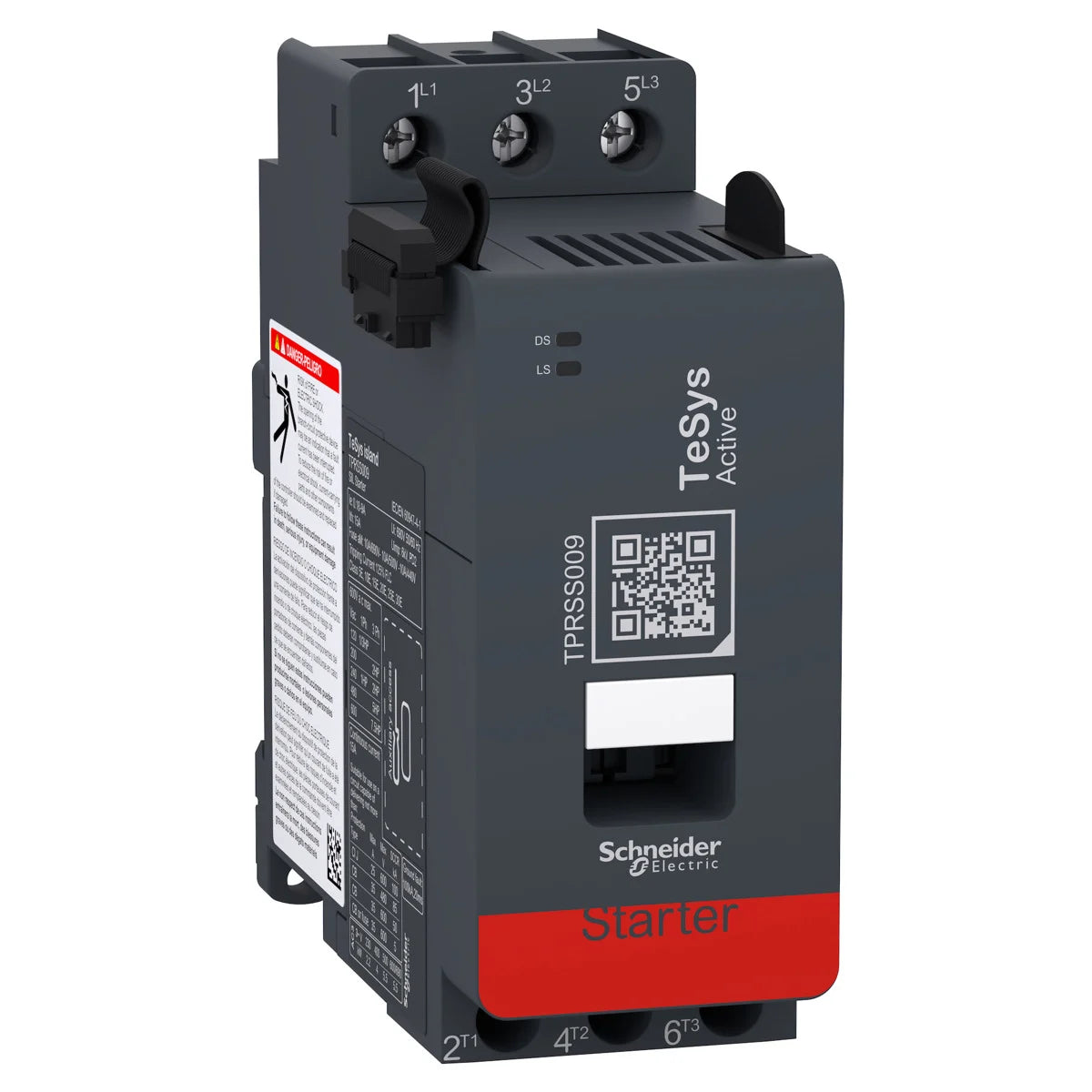

Schneider Electric TPRSS009 SIL Motor Starter TeSys Island 15A at AC-1 9A at AC-3 4kW 5hp DOL type

Product Description

Schneider Electric TPRSS009 is a SIL motor starter in the TeSys island series. This model supports loads up to 9 Amps and motors rated up to four kilowatts or five horsepower. It is designed for AC-1 and AC-3 applications, enhancing control and protection in various setups.

• Supports motors up to 4 kW at 400 V or 5 hp at 480 V
• Can be integrated with other TeSys island modules
• Compliant with IEC 61508 for safety-related applications

Product Highlights

The TPRSS009 provides motor protection features, such as thermal overload protection and phase loss detection. It also monitors electrical parameters and can log switching cycles and fault counts. Ideal for use in industrial automation setups, the starter ensures reliable performance and safety standards compliance.

Product Information

Standard Information

• Catalog Number: TPRSS009
• Manufacturer: Schneider Electric
• Brand: Schneider Electric
• Country of Origin: Mexico
• Warranty: Contractual Warranty: 18 months
• GTIN: 03606489832797

Technical Specifications

• Voltage Rating: 690 V
• Current Rating at AC-1: 15 A
• Current Rating at AC-3: 9 A
• Power Rating: 4 kW at 400 V / 5 hp at 480 V
• Standards Compliance: IEC, UL, CSA, CCC, EAC
• Mounting Type: DIN rail
