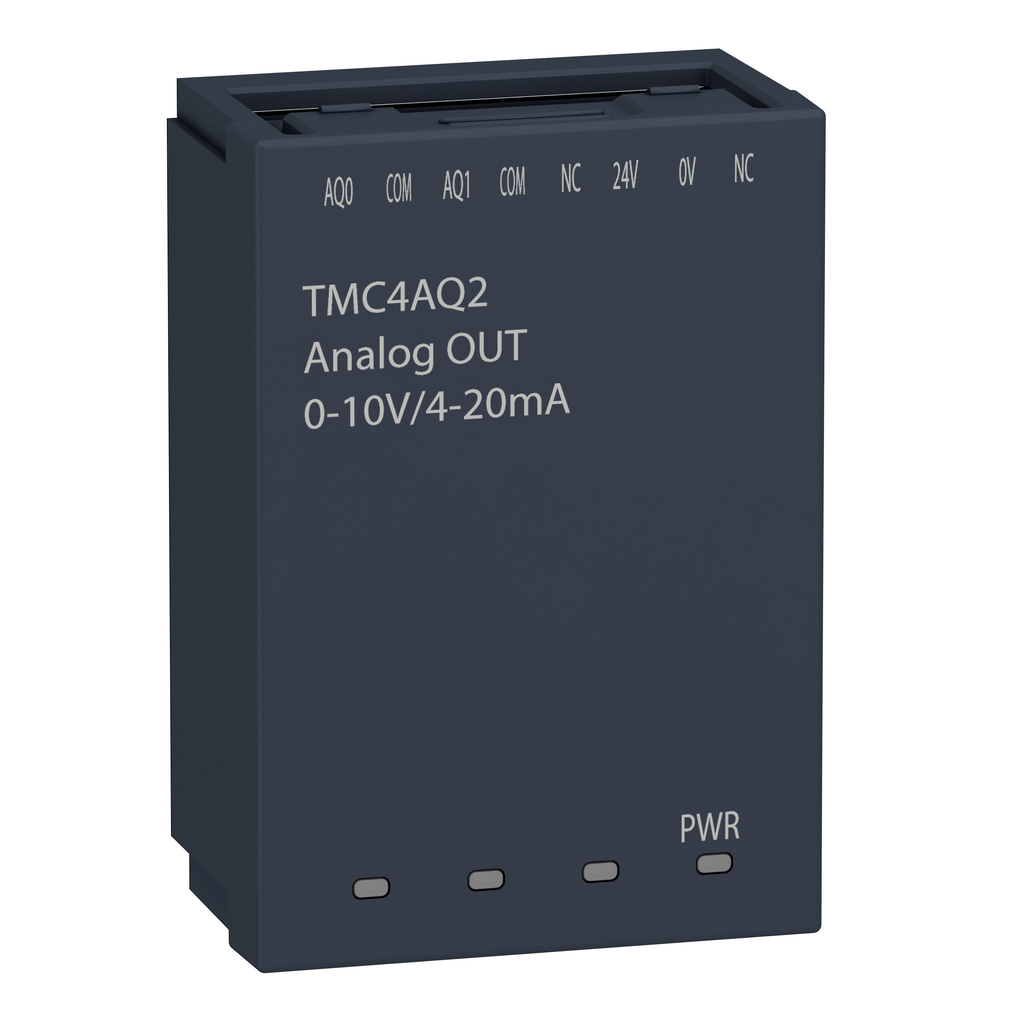

Schneider Electric TMC4AQ2 SQD TMC4AQ2 Analogue Output Cartridge 2 Analog Outputs

Product Description

Schneider Electric TMC4AQ2 is an analogue output cartridge designed for Modicon M241 logic controllers. This unit provides 2 analogue current outputs with 16bit resolution. It allows a maximum cable distance of less than thirty meters. The output is separated from the internal logic by a five hundred voltage DC insulation. This unit connects through spring terminals for reliable electrical connections. Its dimensions are thirty-four millimeters in width, twenty-one millimeters in depth, and fifty millimeters in height. It has a net weight of zero point zero five five kilograms.

• Part of Modicon M241 range
• Compatible with Modicon M241C PLC
• Meets various certifications and standards

Product Highlights

This cartridge is suitable for high-performance applications where speed and position control are necessary. It has been certified according to various standards including CE, IACS E10, and UL specifications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TMC4AQ2
• Depth: 21 mm
• Width: 34 mm
• Height: 50 mm
• Net Weight: 0.055 kg
• Power Supply: 20.4-28.8 V
• Output Signal: 16 bits
• Number of Channels: 2
• Country of Origin: Indonesia
