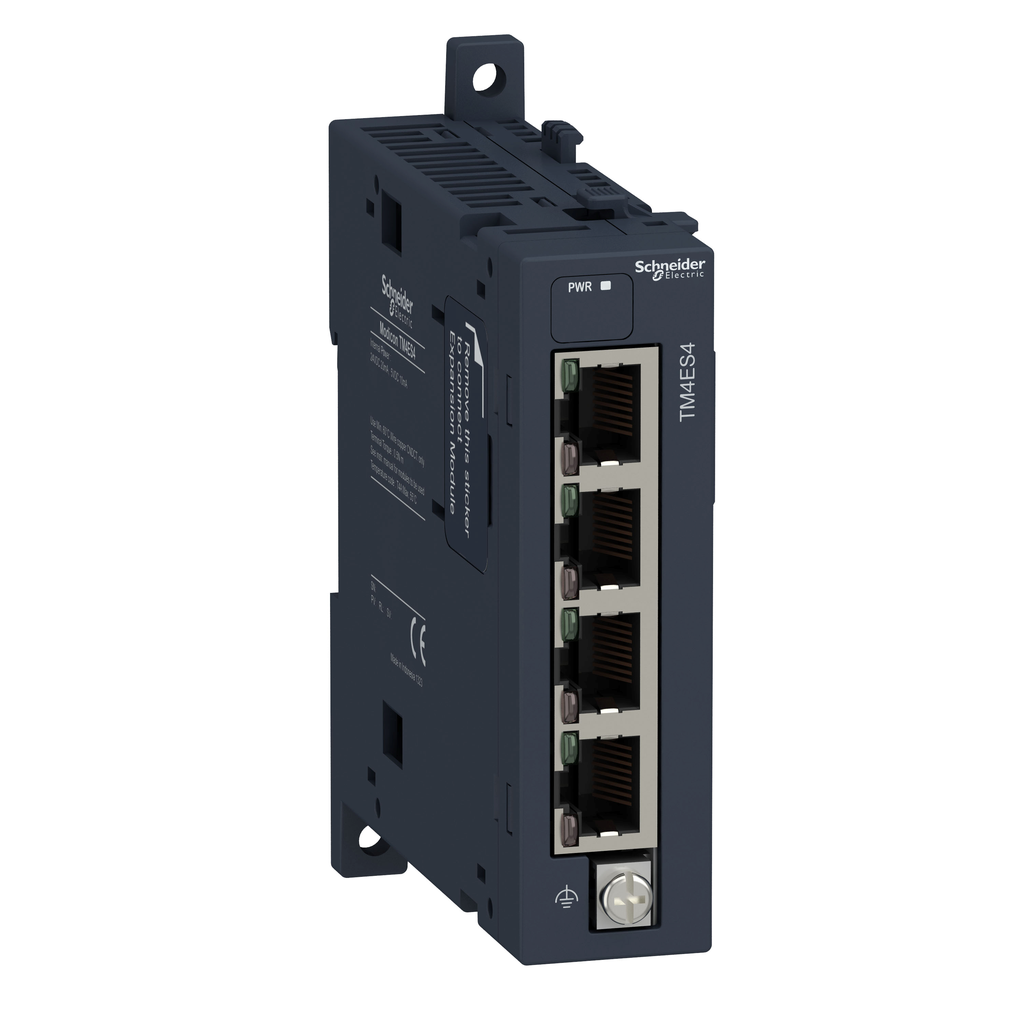

Schneider Electric TM4ES4 network switch module, M

Product Description

The Schneider Electric TM4ES4 is a network switch module designed for Modicon M241 and M251 controllers. This module offers Ethernet connectivity and features four ports for controllers that lack built-in Ethernet functionality. It also provides an additional Ethernet connection through another four ports for controllers that already have embedded Ethernet, excluding TM241CEC24x. The unit is designed with four RJ45 connectors supporting ten or one hundred Mbps with MDI/MDIX capability.

• Four ports for external Ethernet connections
• Compatible with Modicon M241 and M251 controllers
• Supports ten/one hundred Mbps data rates

Product Highlights

This module simplifies communication for automation and control applications, offering flexibility and expandability in network configurations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM4ES4
• Type: Ethernet unmanaged switch
• Depth: 90 mm
• Width: 25 mm
• Height: 90 mm
• Length: 3.54 inches
• Weight: 0.28 lb
• Current: 360 mA
• Operating Temperature: -10 to 50 degrees C (Vertical), -10 to 55 degrees C (Horizontal)
• Power Supply: 360 mA 5 V DC communication bus
• Certifications: C-tick, CULus
• Country of Origin: Indonesia
