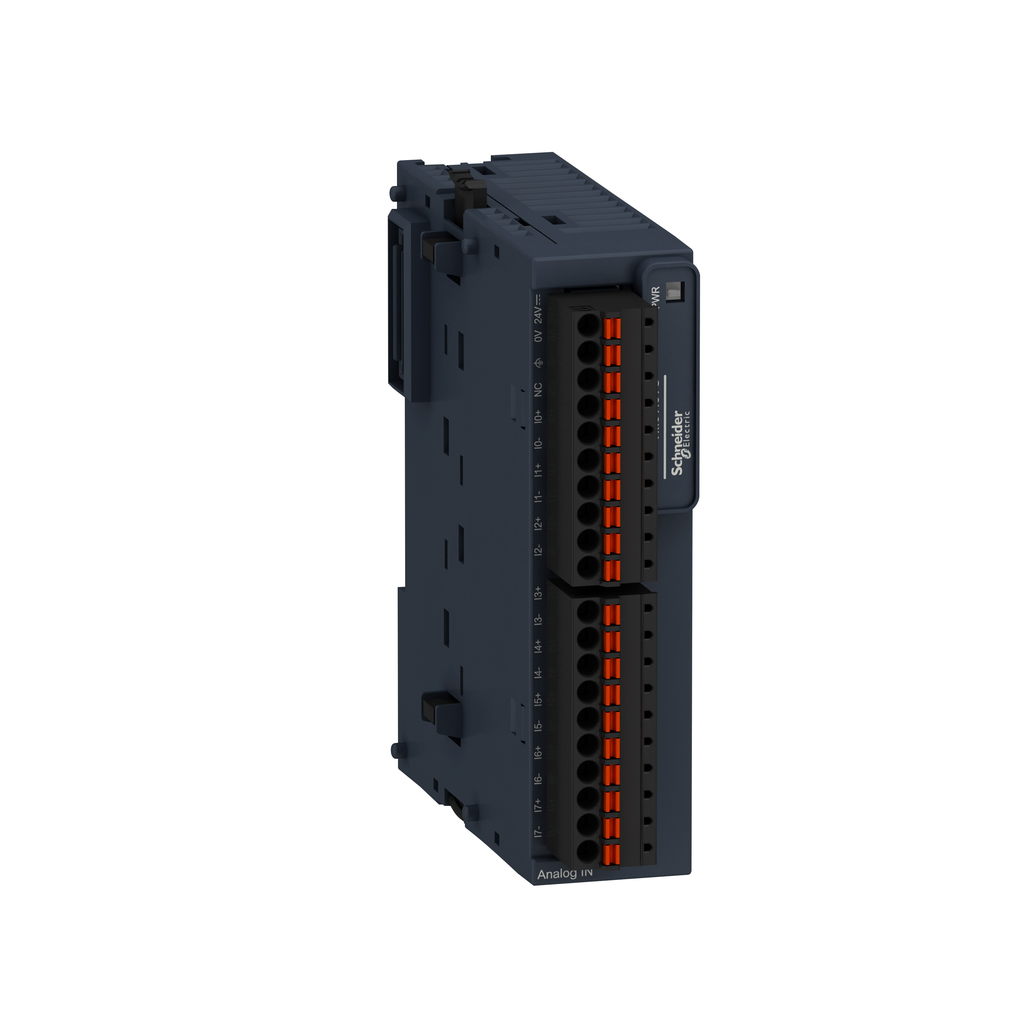

Schneider Electric TM3TI8TG SQD TM3TI8TG analog input module, M 8 Inputs 24V DC

Product Description

Schneider Electric TM3TI8TG is an analog input module from the Modicon TM3 range. It provides eight inputs with high resolution of sixteen and fifteen bits plus sign. This module has a rated supply voltage of twenty-four volts direct current and consumes thirty milliamps at this voltage. The module can operate with variable speed drives or devices with current or voltage inputs. It features insulation rated at fifteen hundred volts AC between input and supply, and five hundred volts AC between input and internal logic. The module includes removable spring terminals for connections and is rated IP20. Its dimensions are twenty-three point six millimeters in width, seventy millimeters in depth, and ninety millimeters in height. It weighs zero point one kilograms and is certified by CE. Compliance with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards ensures its quality. This module is compatible with Modicon M221, M241, and M251 logic controllers and supports various mounting options including top hat type rails. The design includes an interlocking assembly mechanism and uses a bus connector for data and power distribution.

• Eight analog inputs with 16Bit and 15Bit resolution
• IP20 rated with removable spring terminals
• Compatible with Modicon M221, M241, and M251 logic controllers

Product Highlights

Enhance your automation systems with reliable input capabilities using the TM3TI8TG module.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Supply Voltage: 24 V DC
• Current Consumption: 30 mA at 24 V DC
• Inputs: 8
• Width: 23.6 mm
• Depth: 70 mm
• Height: 90 mm
• Weight: 0.1 kg
• Certifications: CE, CULus, HazLoc, EAC, RCM, UKCA
