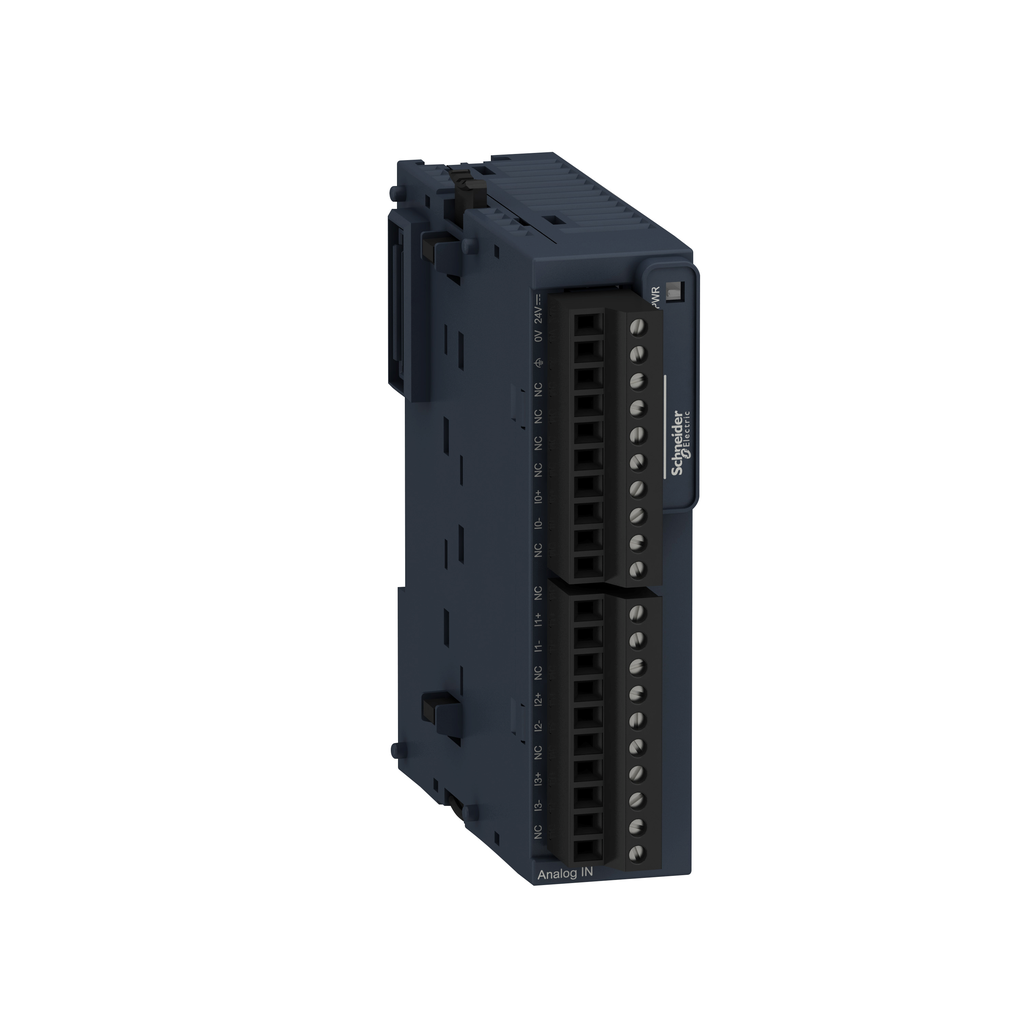

Schneider Electric TM3TI4 Square D Temperature 4-Analog Input Module

Product Description

Schneider Electric TM3TI4 is a part of the Modicon TM3 range and functions as an analog input module. This module supports four analog inputs with a resolution of 16 bits and 15 bits plus sign. It operates on a rated supply voltage of twenty-four volts DC, drawing currents of forty-five to fifty milliamps at five volts DC and thirty-five to forty milliamps at twenty-four volts DC from an external supply. This device is designed to manage variable speed drives and other equipment that utilizes current or voltage inputs. The input and supply are insulated at one thousand five hundred volts AC and internal logic is insulated at five hundred volts AC. The product includes removable screw terminals for easy electrical connections at a pitch of three point eighty-one millimeters. It has an IP20 rating, measuring twenty-three point six millimeters in width, seventy millimeters in depth, and ninety millimeters in height, with a weight of zero point eleven kilograms. As a CE-certified device, it complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. The TM3TI4 module is compatible with Modicon M262, M241, M251, and M221 logic controllers and connects to top hat rails as specified in IEC 60715. The Modicon TM3 modules are designed for quick assembly and connect easily to logic controllers using a bus expansion connector.

• Analog Input Module with 4 Inputs
• IP20 rated with 1500V AC input supply insulation
• Compatible with Modicon M221, M241, M251, M262 controllers

Product Highlights

Enhance controller performance with the Modicon TM3 I/O system.

Product Information

Standard Information

• Catalog Number: TM3TI4
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Analog input module
• Dimensions: 23.6mm Width x 70mm Depth x 90mm Height
• Weight: 0.11 kg
• Supply Voltage: 24V DC
• Insulation Voltage: 1500V AC
• Compatibility: Modicon M221, M241, M251, M262
• Certification: CE, IEC 61131-2
• Operating Temperature: -10 to 55 degrees C (horizontal), -10 to 35 degrees C (vertical)
