Schneider Electric TM3DQ8T discrete output module 8 outputs replacement MPN

Product Description

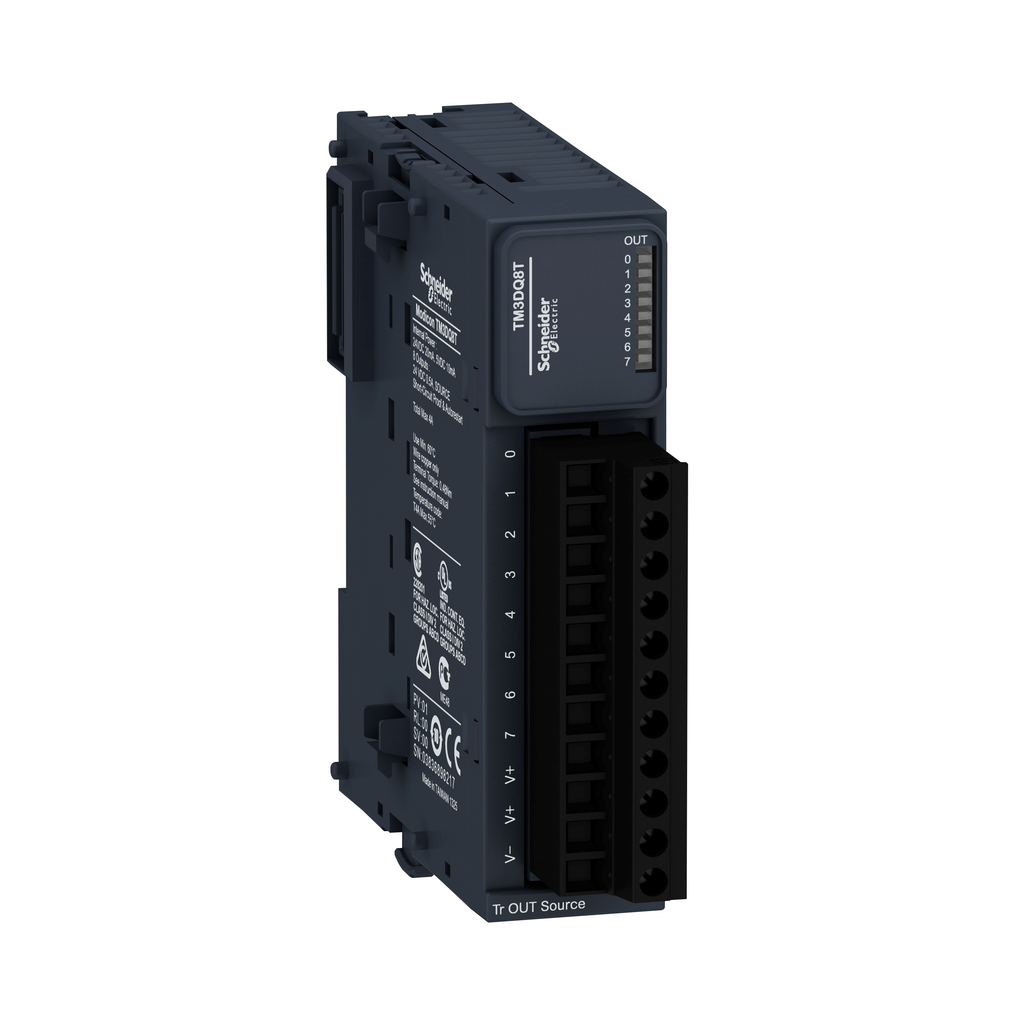

The Schneider Electric TM3DQ8T discrete output module is part of the Modicon TM3 range. This expansion I/O module is compatible with Modicon M221, M241, M251, and M262 controllers. It features eight transistor outputs with positive logic.

• Output voltage: 24V DC
• Current consumption: 20mA at 24V
• IP20 rated with dimensions: width twenty-seven point four millimeters, depth eighty-four point six millimeters, height ninety millimeters

Product Highlights

This module is designed to control variable speed drives or other devices with compatible voltage or current inputs. Insulated up to five hundred volts AC between output and internal logic. It includes removable screw terminals for easy electrical connections.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: TM3DQ8T

Technical Specifications

• Type: Discrete output module
• Depth: 84.6 millimeters
• Width: 27.4 millimeters
• Height: 90 millimeters
• Weight: 0.110 kilograms
• Output Signal: Positive logic (source)
• Power Supply: 24V DC
• Response Time: 450 microseconds
• Certifications: CE, CULus, C-Tick
• Country of Origin: Taiwan
