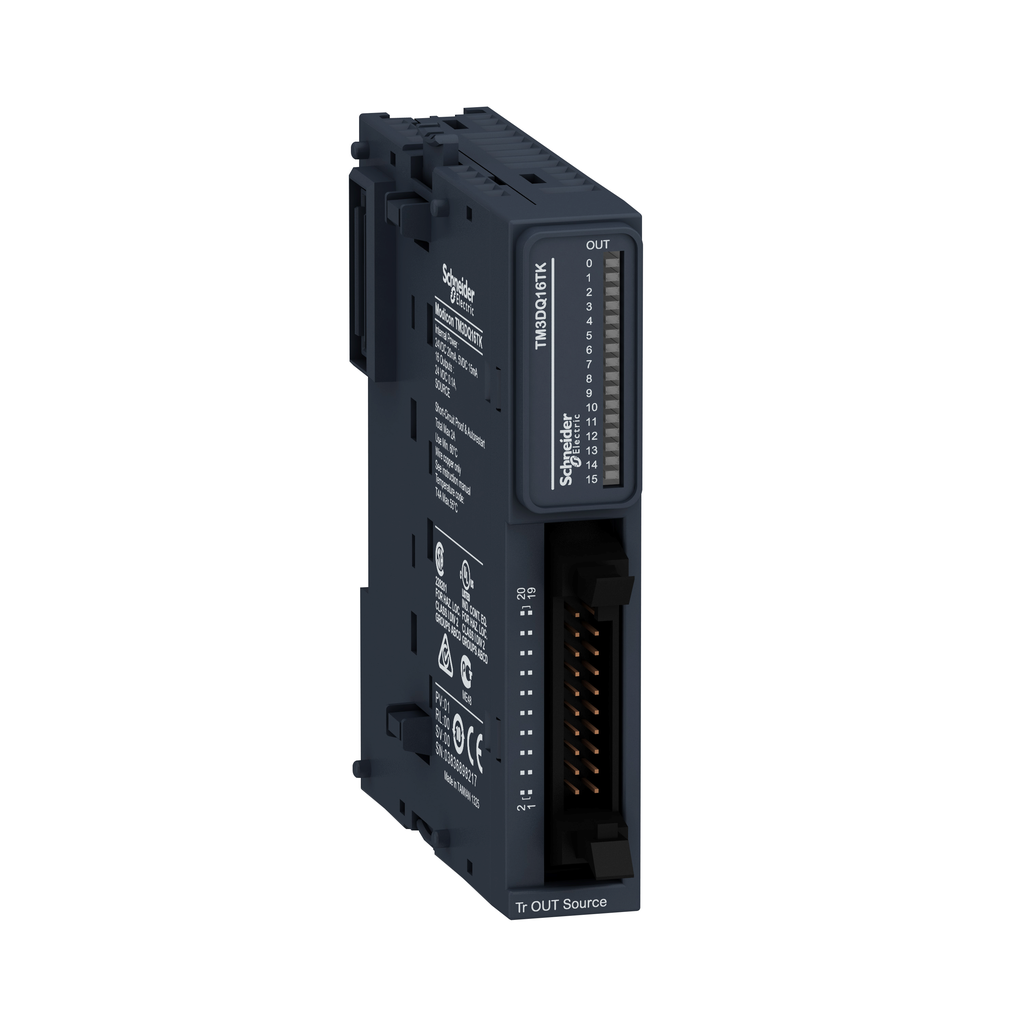

Schneider Electric TM3DQ16TK SQD TM3DQ16TK Discrete Output Module 16 Outputs Transistor PNP HE10

Product Description

The Schneider Electric TM3DQ16TK is a discrete output module that is part of the Modicon TM3 series. This module offers 16 transistor outputs with source logic. It functions at an output voltage of twenty-four volts DC with a current consumption of twenty milliamperes via a bus connector. The unit is designed to control variable speed drives and other devices with current or voltage inputs.

• 16 transistor outputs with source logic
• Output voltage of 24V DC
• Insulation ratings: 1500V AC output to supply, 500V AC output to internal logic

Product Highlights

This module is compatible with Modicon M221, M241, M251, and M262 logic controllers and features a connector for easy wiring. It is housed in an IP20 enclosure and is suitable for various mounting options.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM3DQ16TK
• Dimensions: 21.4mm width x 81.3mm depth x 90mm height
• Weight: 0.72 kg
• Certifications: CE, CULus, C-Tick
• Operating Temperature: -10 to 35 degrees Celsius vertical installation, -10 to 55 degrees Celsius horizontal installation
• Storage Temperature: -25 to 70 degrees Celsius
• Country of Origin: Taiwan
• Number of Outputs: 16
