Schneider Electric TM3DQ16R Square D TM3 16-Output Relay

Product Description

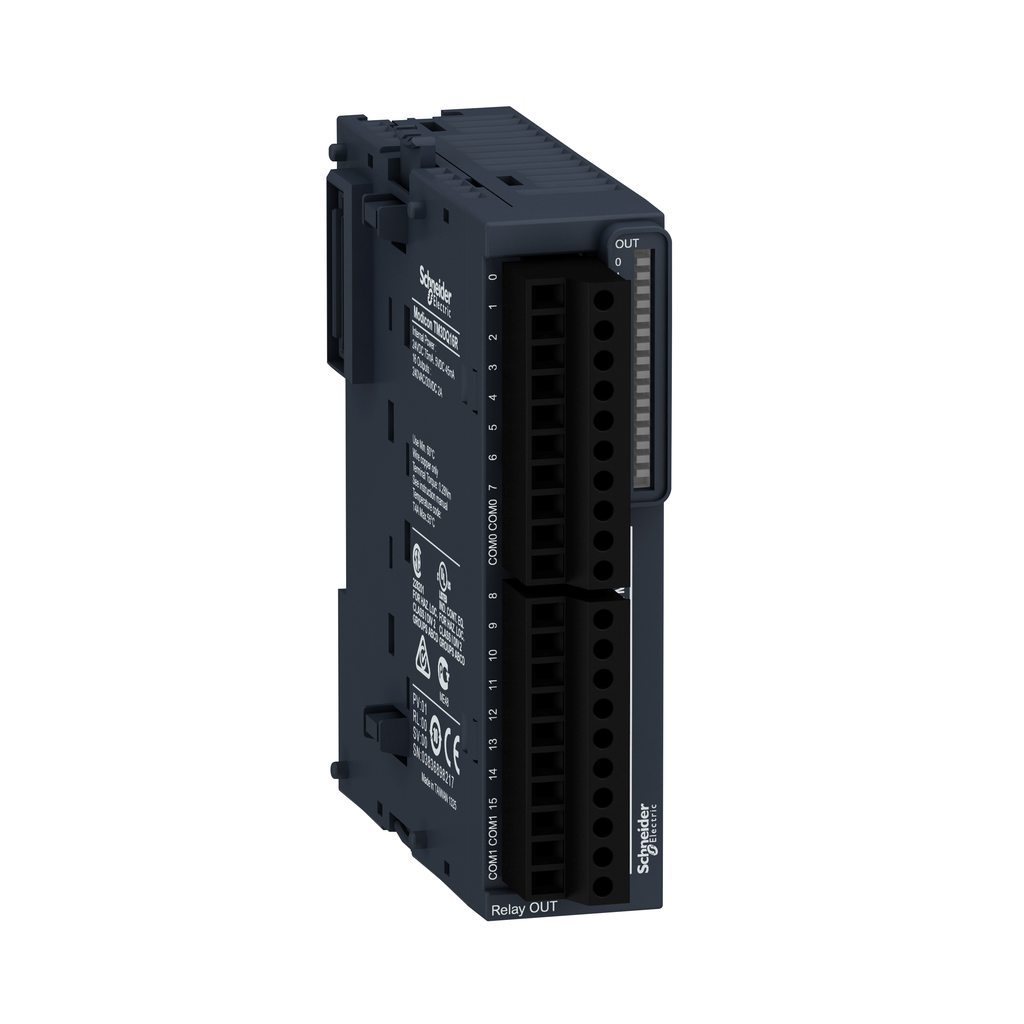

The Schneider Electric TM3DQ16R is a digital output module that belongs to the Modicon TM3 series. This module features sixteen normally open relay outputs rated at two amps. It includes a removable screw terminal block and can be securely mounted on a standard DIN rail that measures thirty-five millimeters wide. The TM3DQ16R enhances the existing embedded inputs and outputs of Modicon controllers such as the M221, M221 Book, M241, and M251. This output module ensures electrical insulation with ratings of twenty-three hundred volts AC between the outputs and the internal logic. Additional voltage ratings include seven hundred fifty volts AC for outputs and one thousand five hundred volts AC for output groups. Equipped with removable spring terminals, it is designed for easy electrical connections. The unit is rated IP20, providing a level of protection against dust and incidental contact. The dimensions for this module are width of twenty-three point six millimeters, depth of seventy millimeters, and height of ninety millimeters. The weight of the product is zero point fourteen kilograms. It meets CE certification and adheres to EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with various Modicon logic controllers, including the M262 and supports top hat rail types that comply with IEC 60715.

• Sixteen N/O relay outputs rated at two amps
• Removable screw terminal block for easy installation
• Compatible with various Modicon controllers

Product Highlights

This module improves controller functionality by providing additional I/O capabilities, ensuring electrical safety and reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: China

Technical Specifications

• Catalog Number: TM3DQ16R
• Type: Discrete output module
• Width: 23.6 mm
• Depth: 70 mm
• Height: 90 mm
• Weight: 0.14 kg
• Output Signal: Relay normally open
• Operating Temperature: -10 to 35 degrees C (Vertical); -10 to 55 degrees C (Horizontal)
