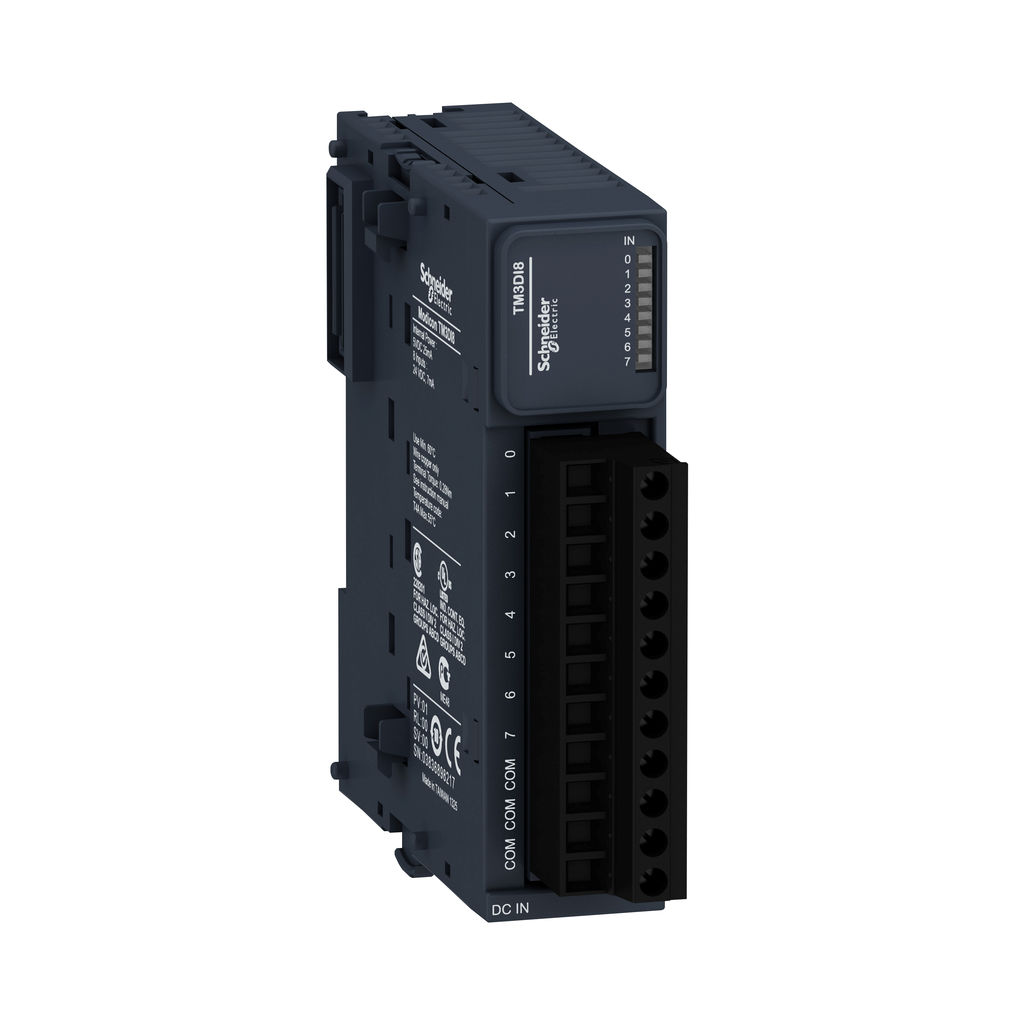

Schneider Electric TM3DI8 discrete input module, M 8 inputs 24V DC

Product Description

Schneider Electric TM3DI8 is a discrete input module designed for use with Modicon controllers. This module features eight inputs operating at twenty-four volts DC. It allows for configurations with positive or negative logic. The TM3DI8 has a bus connection that supports a current consumption of twenty-four milliamps at high states and five milliamps at low states.

• IP20 rated enclosure for protection.
• Removable screw terminals for easy wiring.
• Compatible with several Modicon models including M221, M241, M251, and M262.

Product Highlights

The Schneider Electric TM3DI8 input module enhances automation setups with its reliable input capabilities and compatibility with a range of Modicon logic controllers.

Product Information

Standard Information

• Catalog Number: TM3DI8
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Discrete input module
• Width: 27.4 mm
• Depth: 84.6 mm
• Height: 90 mm
• Net Weight: 0.085 kg
• Operating Temperature: -10 to 35 degrees C
• Input Voltage: 24V DC
• Certification: CE, CULus, C-Tick
