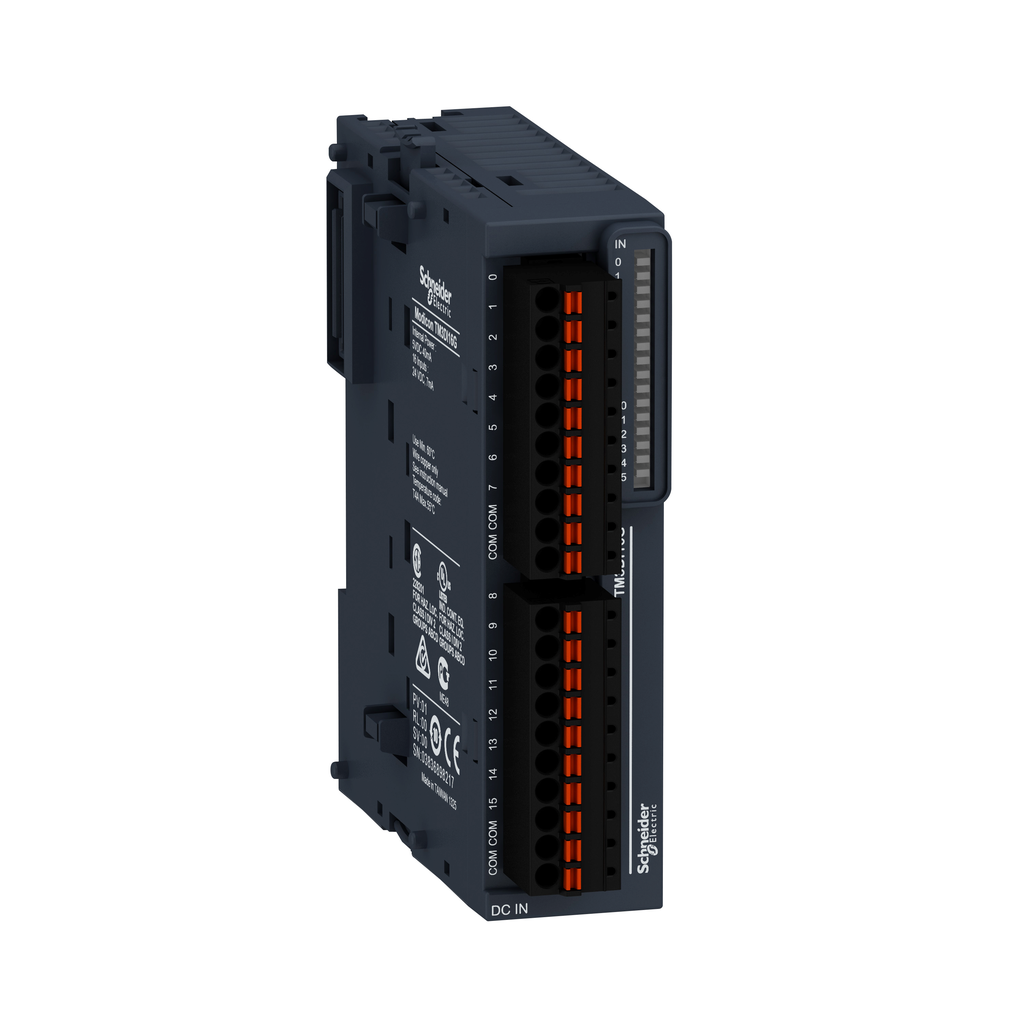

Schneider Electric TM3DI16G discrete input module 24V DC

Product Description

Schneider Electric TM3DI16G is a discrete input module designed for the Modicon TM3 series. This module offers 16 discrete inputs utilizing sink or source logic. It operates at an input voltage of twenty-four volts DC with a current consumption of forty milliamperes at five volts DC via a bus connector. This module can be configured for a total of sixteen inputs. It maintains insulation between the input and internal logic at five hundred volts AC.

• IP20 rated module
• Compatible with Modicon M221, M241, M251, and M262
• Dimensions: twenty-seven point four millimeters width, eighty-four point six millimeters depth, ninety millimeters height

Product Highlights

This module supports top hat type rails conforming to IEC 60715 and comes with removable spring terminals for easy electrical connections. It simplifies assembly with a bus expansion connector that distributes data and power supply to connected devices, enhancing the performance of your control system.

Product Information

Standard Information

• Catalog Number: TM3DI16G
• Manufacturer: Schneider Electric

Technical Specifications

• Input Voltage: 24 V DC
• Input Current Consumption: 40 mA at 5 V DC; 5 mA at 24 V DC
• Number of Inputs: 16
• Weight: 0.1 kg
• Operating Temperature: -10 to 35 degrees C
• Country of Origin: Taiwan
• Certifications: CE, CULus, C-Tick
• Compliance Standards: EN/IEC 61131-2
