Schneider Electric TM3DI16 Square D TM3DI16 16 Input Module 24V DC

Product Description

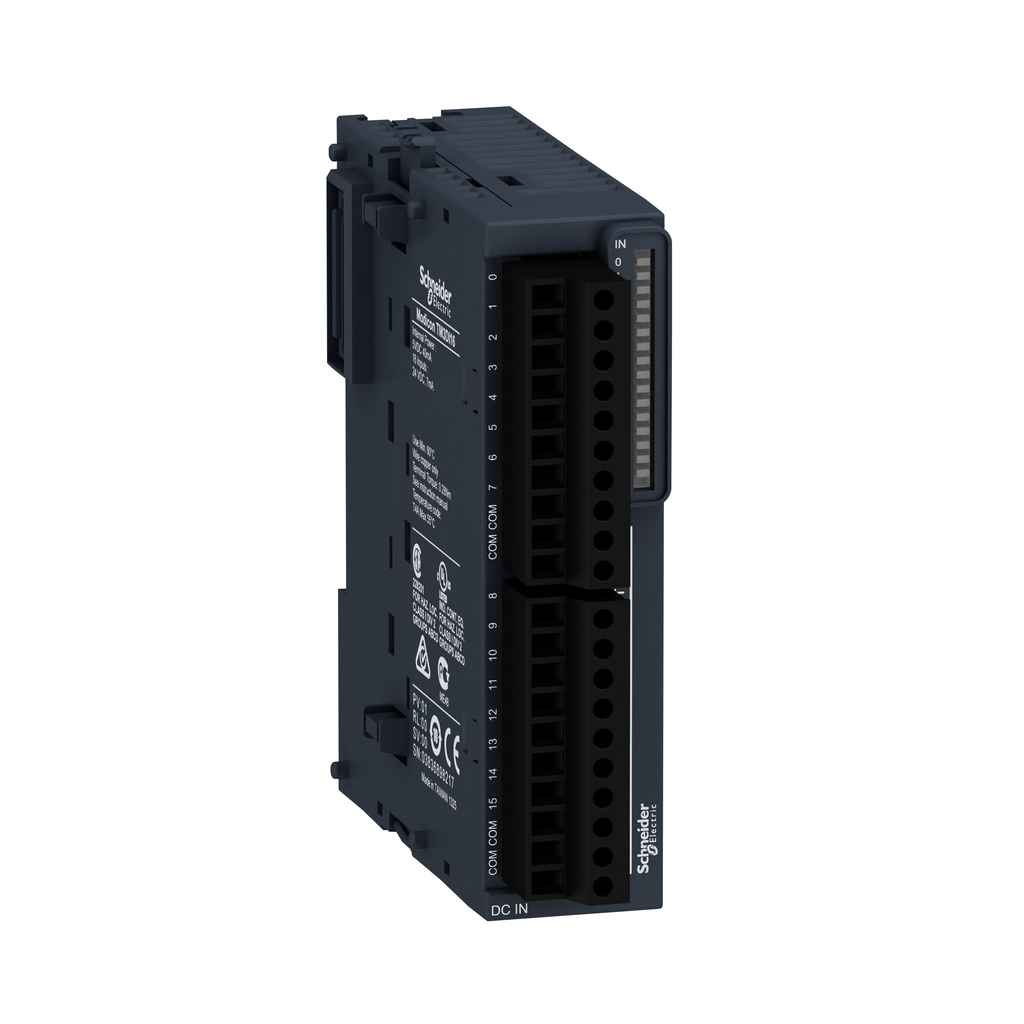

Schneider Electric TM3DI16 is a digital input module designed for Modicon controllers. The TM3DI16 module has 16 logic inputs powered by twenty-four volts DC. It comes with a removable screw terminal block and is compatible with DIN rail installation. This module enhances the embedded I/O capabilities of Modicon M221, M221 Book, M241, and M251 logic controllers. The insulation level is impressive, with output supply insulated up to 1500 volts AC and internal logic insulated up to 500 volts AC.

This module is built with removable spring terminals for easy electrical connections. It meets IP20 standards for housing and comes in compact dimensions of twenty-three point six millimeters in width, seventy millimeters in depth, and ninety millimeters in height. The TM3DI16 weighs zero point one zero five kilograms and is CE certified.

• Compatible with Modicon M262, M241, M251, and M221 controllers
• Supports top hat types TH35-15 and TH35-7.5 for mounting
• Designed with an interlocking assembly mechanism and bus expansion connector for data and power distribution

Product Highlights

Enhances I/O performance of Modicon controllers with a simple connection system.

Product Information

Standard Information

• Catalog Number: TM3DI16
• Manufacturer: Schneider Electric

Technical Specifications

• Power Supply: 24 V DC
• Operating Temperature: -10 to 35 degrees C vertical, -10 to 55 degrees C horizontal
• Weight: 0.1 kg
• Number of Channels: 16
• Response Time: 4 ms
• Enclosure: IP20
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
