Product Description

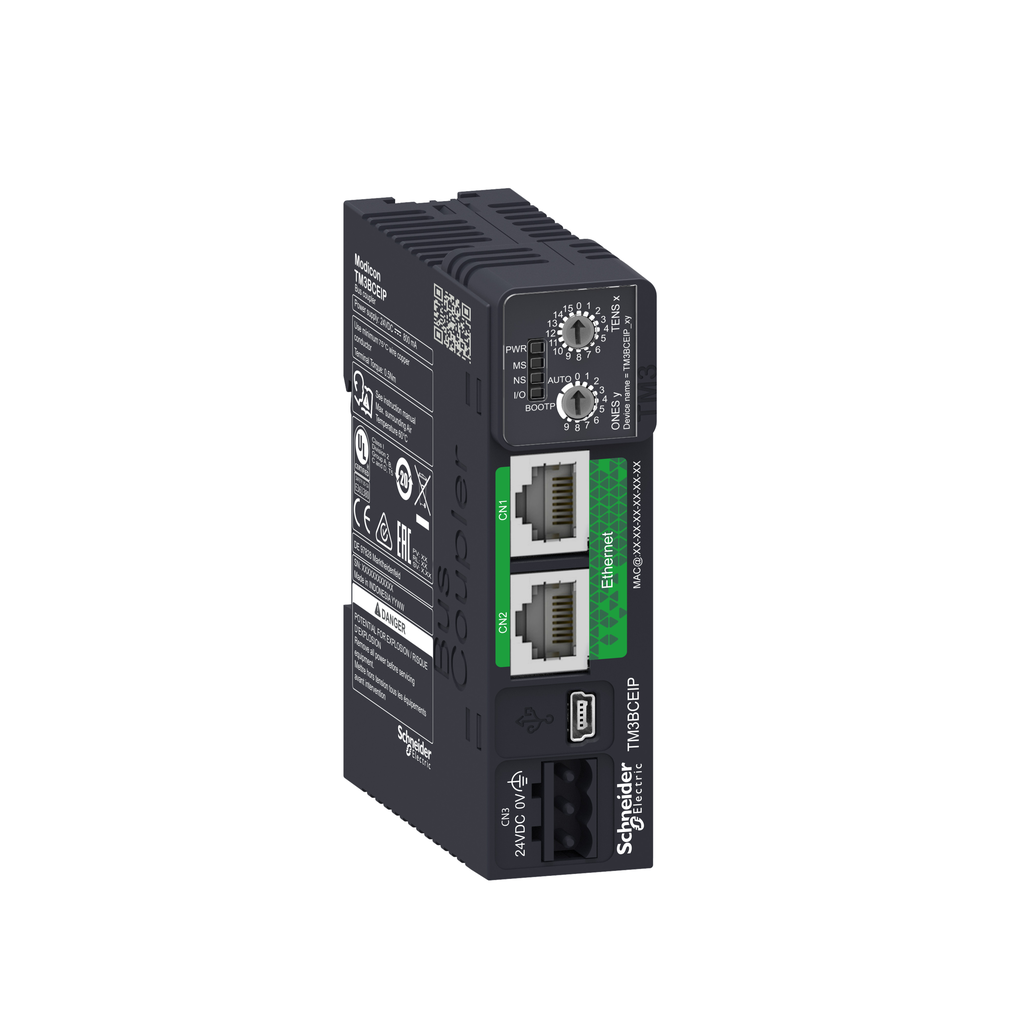

The Schneider Electric TM3BCEIP is a distributed I/O module designed for the Modicon series of programmable controllers, specifically M221, M241, M251, and M262. This module supports a daisy chain topology, allowing for streamlined connections in your control system. It provides flexible communication options with half duplex, full duplex, and auto negotiation modes featuring a data transmission rate of 10/100 Mbps. The TM3BCEIP includes web services for Ethernet and USB connections, simplifying network integration.

• Compact design of 27 millimeters width, 70 millimeters depth, and 96.5 millimeters height.
• IP20 protection rating, suitable for various industrial environments.
• Compatibility with logic and motion controllers, optimizing system functionality.

Product Highlights

This module enhances the performance of Modicon controllers with easy installation through an interlocking assembly mechanism.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM3BCEIP
• Weight: 0.10 kg
• Dimensions: 27 mm x 70 mm x 96.5 mm
• Current Rating: 0.8 Amp
• Certifications: CE, CULus, EAC, EU-RO MR, RCM, UKCA
• Country of Origin: Indonesia
• Storage Temperature: -25 to 70 degrees C
• GTIN: 03606489703530
