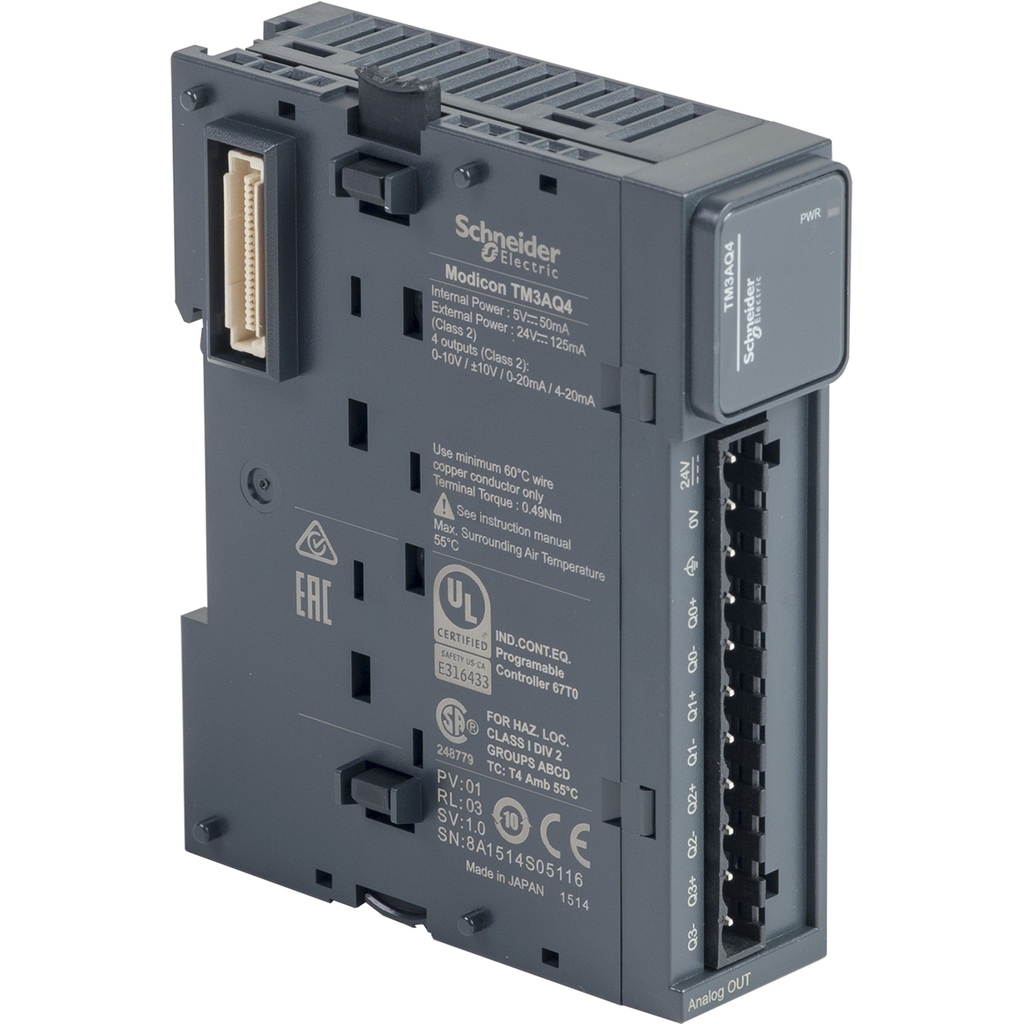

Schneider Electric TM3AQ4 Square D TM3AQ4 4-Analog Output Module 24V DC

Product Description

Schneider Electric TM3AQ4 is a four-channel analog output module designed for the Modicon TM3 range. This module enables connection with Modicon M221, M241, M251, and M262 logic controllers. It supports four outputs with eleven bits plus sign and twelve bits resolution. The operating voltage is twenty-four volts direct current, with a current consumption of one hundred twenty-five milliamps at full load. It is equipped to control devices such as variable speed drives that require either current or voltage input.

• Four-channel analog output
• 24V DC power supply
• Designed for Modicon logic controllers

Product Highlights

This module maintains insulation between output and supply rated at one thousand five hundred volts alternating current and between output and internal logic at five hundred volts alternating current. It features removable screw terminals with a five-point zero-eight millimeter pitch for connection. The module holds an IP20 enclosure rating and measures twenty-three point six millimeters wide, seventy millimeters deep, and ninety millimeters in height. With a net weight of zero point one one five kilograms, it complies with various safety standards.

Product Information

Standard Information

• Catalog Number: TM3AQ4
• Brand: Schneider Electric

Technical Specifications

• Type: Analog output module
• Weight: 0.25 lb
• Width: 23.6 mm
• Depth: 70 mm
• Height: 90 mm
• Power Supply: 24V DC
• Output Signal: 11 bits + sign; 12 bits
• Certifications: CE, CULus, EAC
