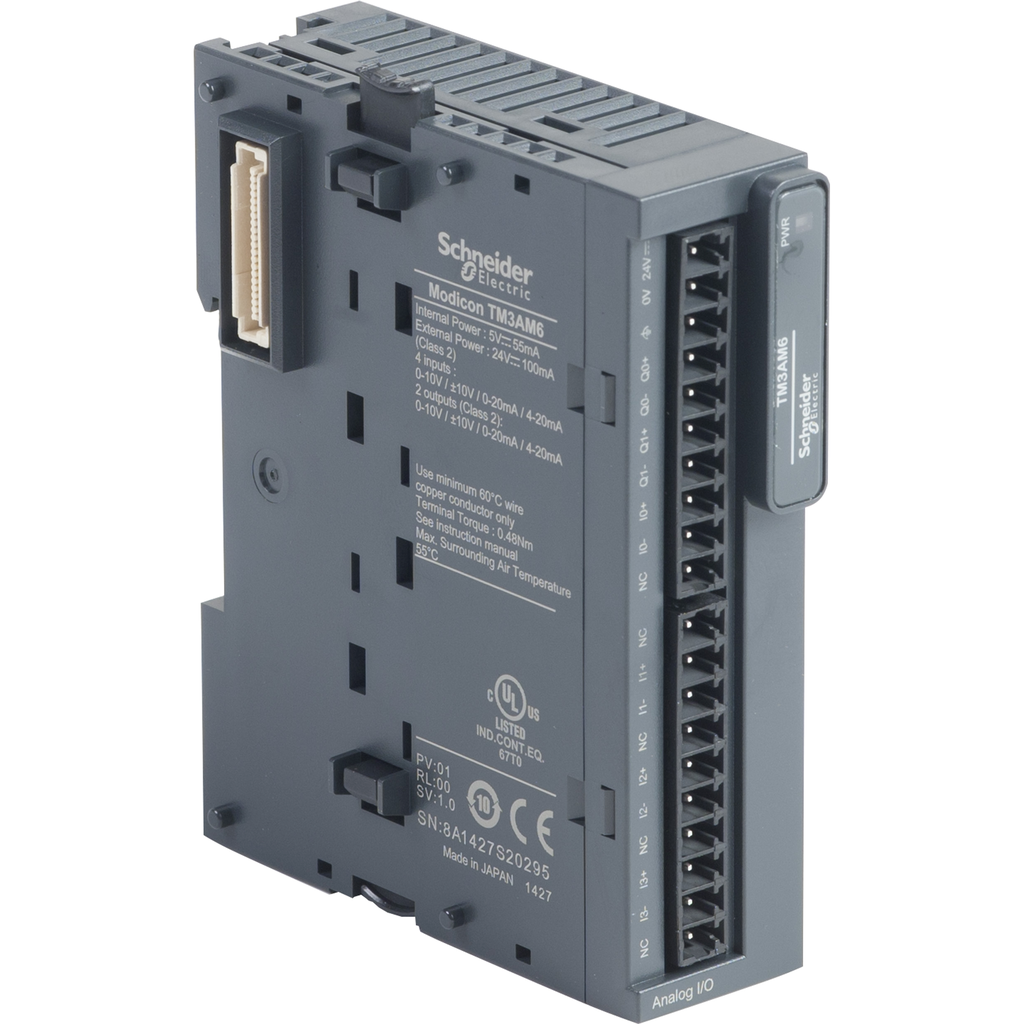

Schneider Electric TM3AM6 SQD TM3AM6 IO Analog Module, Modicon, 4 Inputs, 2 Outputs, 24V DC

Product Description

The Schneider Electric TM3AM6 is an I/O analog module designed for use with Modicon controllers M221, M241, M251, and M262. It features four analog inputs and two outputs, supporting 11 bit plus sign and 12 bit input resolution. This module operates at a rated supply voltage of twenty-four volts DC and consumes forty-five milliamps. It is capable of connecting to devices that require current or voltage inputs, making it versatile for various applications.

• Insulation rated at fifteen hundred volts AC between input and supply
• IP20 enclosure for protection
• Compatible with top hat rails conforming to IEC 60715

Product Highlights

Enhance your control systems with the TM3AM6 module, which allows for reliable communication and data processing in automation projects.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: TM3AM6

Technical Specifications

• Dimensions: 23.6 mm Width x 70 mm Depth x 90 mm Height
• Weight: 0.11 kg
• Input Signal: 12 bits; 11 bits + sign
• Operating Temperature: -10 to 55 degrees C
• Storage Temperature: -25 to 70 degrees C
• Load Type: Resistive
• Country of Origin: Japan
• Certifications: CE, CULus, UKCA
