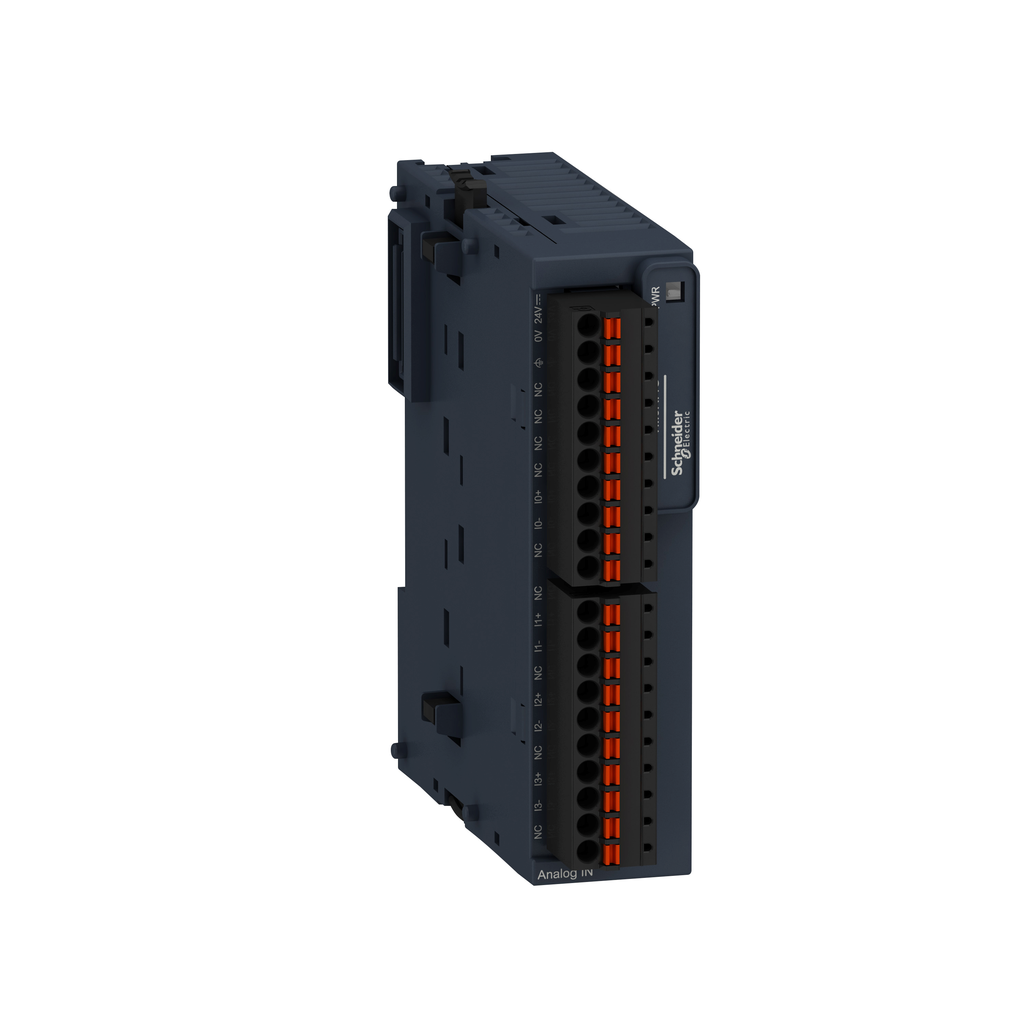

Schneider Electric TM3AI4G SQD TM3AI4G analog input module, Mo

Product Description

The Schneider Electric TM3AI4G is an analog input module designed for use with Modicon controllers M221, M241, M251, and M262. This module features four inputs offering 11bit with sign and 12bit resolution. It operates at a rated supply voltage of twenty-four volts DC, with a current consumption of thirty-five milliamps at five volts DC when no load is applied. Additionally, it draws forty-five milliamps at five volts DC under full load and thirty milliamps at twenty-four volts DC with an external supply.

• Insulation rated at 1500 volts AC between input and supply, and 500 volts AC between input and internal logic.
• Compatible with variable speed drives and devices utilizing current or voltage inputs.
• IP20 rated with a compact design for easy installation.

Product Highlights

The TM3AI4G module is ideal for controlling various industrial devices while maintaining high standards of safety and efficiency.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: TM3AI4G
• Power Supply: 24 V DC
• Dimensions: Width twenty-three point six mm, Depth seventy mm, Height ninety mm
• Weight: 0.1 kg
• Operating Temperature: -10 to 55 degrees Celsius (horizontal), -10 to 35 degrees Celsius (vertical)
• Number of Channels: 4
• Enclosure Rating: IP20
• Certifications: CE, CULus, UL HazLoc
