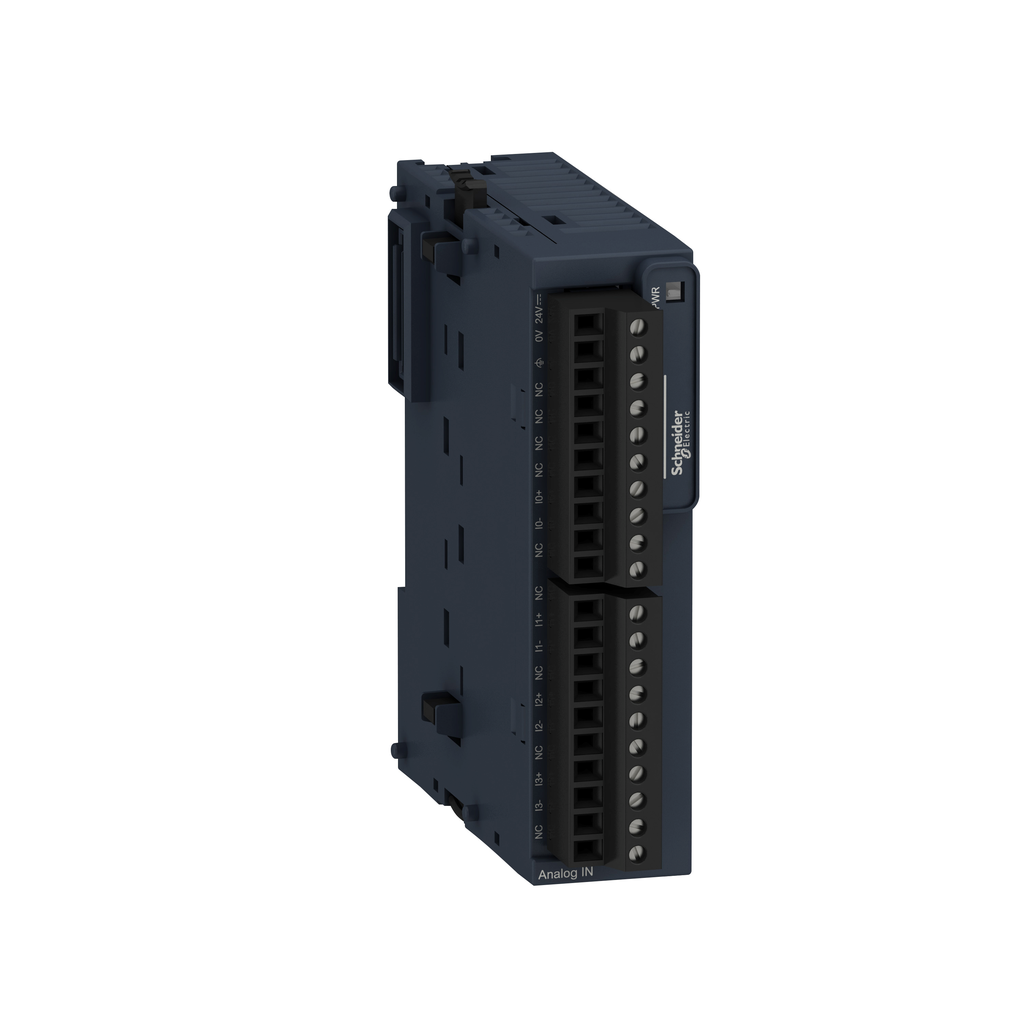

Schneider Electric TM3AI4 Square D TM3AI4 4-Analog Input Module 24V DC

Product Description

The Schneider Electric TM3AI4 is a 4-Analog input module designed for the Modicon TM3 range. This module supports Modicon M221, M241, M251, and M262 controllers. It accepts four analog inputs with a resolution of 12-bit plus sign and 11-bit. The operating voltage is 24V DC, and it has a current consumption of thirty-five milliamps at five volts DC with no load through the bus connector. This input module also works under various load conditions, consuming forty-five milliamps at five volts DC when fully loaded and thirty milliamps at twenty-four volts DC with an external supply.

This input module is insulated against input and supply voltages up to fifteen hundred volts AC, with internal logic isolation of five hundred volts AC. It features removable screw terminals, allowing for electrical connections with a pitch adjustment of three point eighteen millimeters for inputs and supply. Rated at IP20, this module measures twenty-three point six millimeters in width, seventy millimeters in depth, and ninety millimeters in height. It has a weight of one hundred ten grams.

This module complies with several standards, including EN/IEC 61131-2 and EN/IEC 61010-2-201, and is CE certified. It supports top hat rail types TH35-15 and TH35-7.5, conforming to IEC 60715. The TM3 expansion modules are designed for simple interlocking assembly, utilizing a bus connector to manage data and power distribution.

• Four analog inputs with high resolution
• Compatible with multiple Modicon controllers
• Insulation rated for high voltage protection

Product Highlights

Enhance controller performance with the Modicon TM3 I/O system tailored for specific Modicon models.

Product Information

Standard Information

• Catalog Number: TM3AI4
• Manufacturer: Schneider Electric

Technical Specifications

• Input Channels: 4
• Supply Voltage: 24 V DC
• Width: 23.6 mm
• Depth: 70 mm
• Height: 90 mm
• Net Weight: 0.11 kg
• Compliance Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
• Protection Rating: IP20
