Schneider Electric TM251MESE SQD TM251MESE logic controller, Mod 24V DC (1 each) Replacement MPN

Product Description

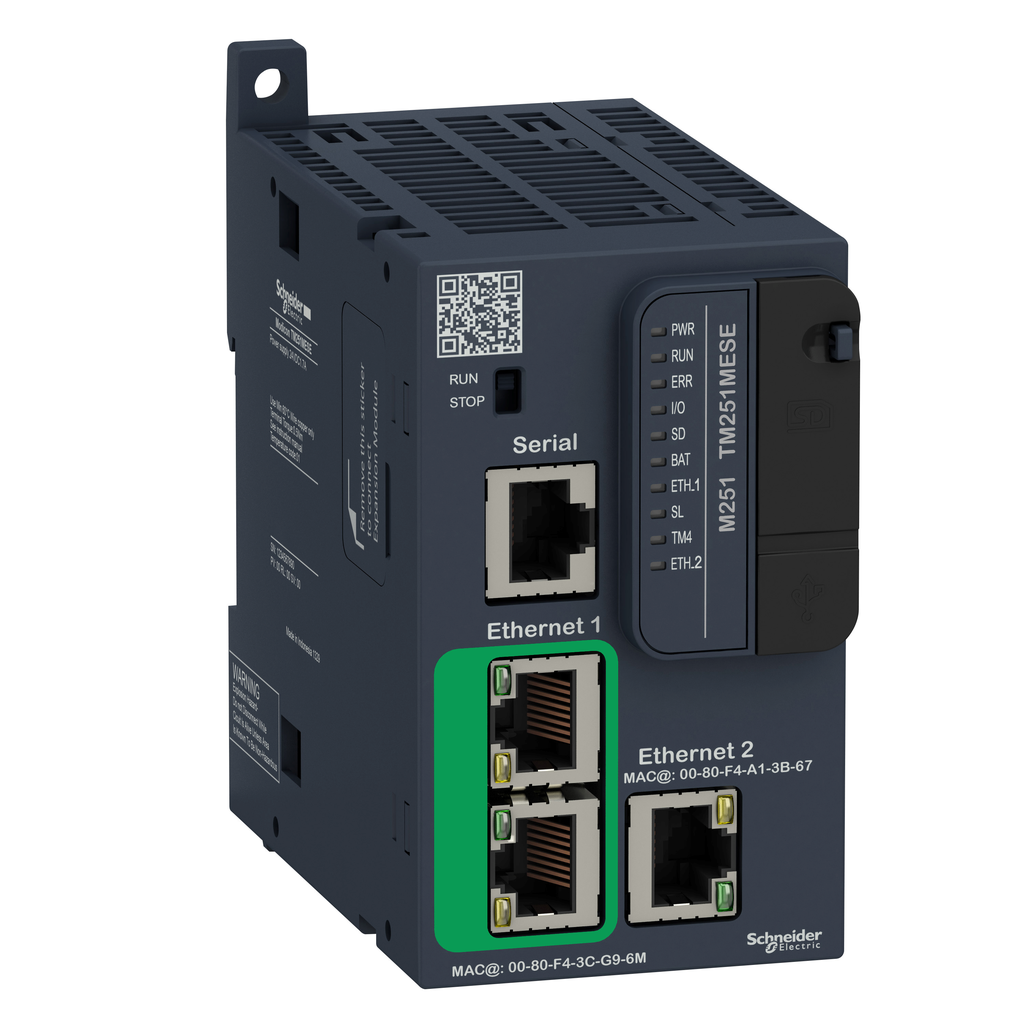

Schneider Electric offers the TM251MESE logic controller as part of its Modicon M251 range. This controller is suitable for modular and distributed architectures. It allows for seven local and fourteen remote I/O expansion modules. The rated supply voltage is twenty-four volts DC with an inrush current of fifty amps. The power consumption ranges from thirty-two point six watts to forty point four watts. Data transfer is enhanced with an SD card, embedded web server, and FTP server.

• USB port with mini B USB 2.0 connector
• Supports up to thirty-two gigabytes of SD card memory
• IP20 rated for dust and moisture protection

Product Highlights

The Modicon M251 logic controller is built for compact machines needing speed and position control functionalities. It includes features like built-in server capabilities for easy integration into existing systems.

Product Information

Standard Information

• Catalog Number: TM251MESE
• Manufacturer: Schneider Electric

Technical Specifications

• Supply Voltage: 24V DC
• Inrush Current: 50A
• Power Consumption: 32.6W to 40.4W
• Memory: 64MB for system RAM, 8MB for program
• Dimensions: 54mm Width x 95mm Depth x 90mm Height
• Weight: 0.22kg
• Certification: CE, CSA, CULus
• Country of Origin: France
