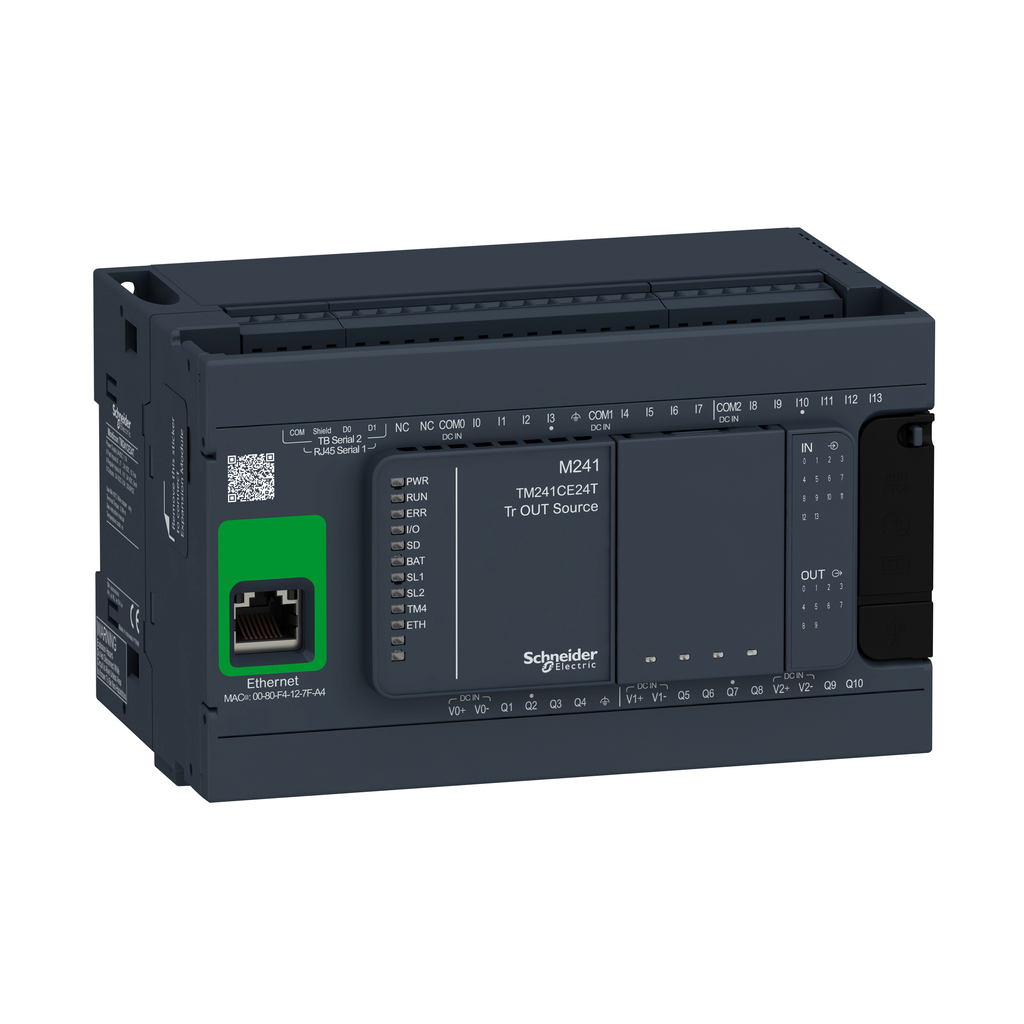

Schneider Electric TM241CE24T logic controller, Mo

Product Description

The Schneider Electric TM241CE24T is a logic controller designed for demanding performance applications. It features fourteen discrete inputs and eight fast inputs, along with ten transistor outputs and four fast outputs featuring ethernet PNP configuration. This controller operates on a rated supply voltage of twenty-four volts DC with a maximum output current of zero point five amps for the transistor and zero point one amps for the fast output.

• Integrated USB and serial link connections for diverse applications.
• Eight megabytes of program memory and sixty-four megabytes of RAM.
• IP20 rated with a compact design suitable for high-performance machines.

Product Highlights

This controller simplifies application development through an organized screen design, allowing for intuitive programming and operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM241CE24T
• Depth: 3.74 inches
• Width: 5.91 inches
• Height: 3.54 inches
• Weight: 1.17 lb
• Memory: 64 MB for system RAM, 8 MB for program memory
• Output Signal: Positive logic (source), Transistor
• Certifications: CE, IACS E10, CSA, UL 508, and others
