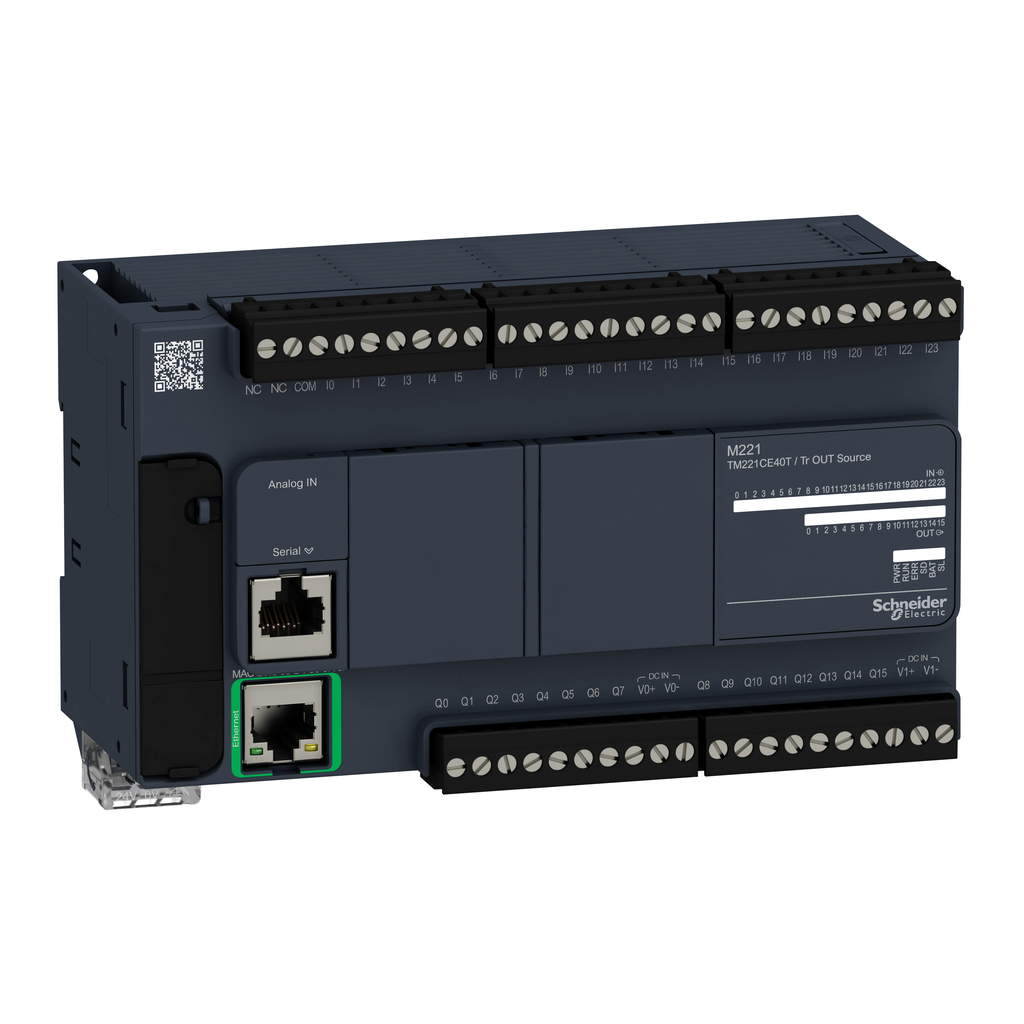

Schneider Electric TM221CE40T SQD logic controller, Mo 24V DC (40 I/O) Replacement MPN

Product Description

The Schneider Electric TM221CE40T is a logic controller from the Modicon M221 range. It features forty logic I/O points and operates on a twenty-four volt DC power supply. The device includes removable screw terminal blocks to facilitate easy connections for both I/O and power supply. A backup battery (BR2032) is provided to ensure uninterrupted operation, along with a cable for analog input connection.

• Supports Ethernet, RS 232/RS 485 serial link, and USB mini-B programming port.
• Comes with expansion capability through Modicon TM3 modules.
• Ideal for controlling simple machines and automation tasks.

Product Highlights

The TM221 logic controller is designed for flexibility and efficiency, allowing easy modifications and expansions for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Catalog Number: TM221CE40T
• Input Voltage: 24 V DC
• Output Type: Transistor
• Number of I/O: 40
• Communication Ports: Ethernet, RS 232/RS 485, USB mini-B
• Memory: 256 KB for program with 10000 instructions
• Storage Temperature: -25 to 70 degrees C
• Operating Temperature: -10 to 55 degrees C for horizontal, -10 to 35 degrees C for vertical installation
• Certifications: ABS, CE, CULus, UKCA
