Schneider Electric TM221CE16R logic controller, Mo

Product Description

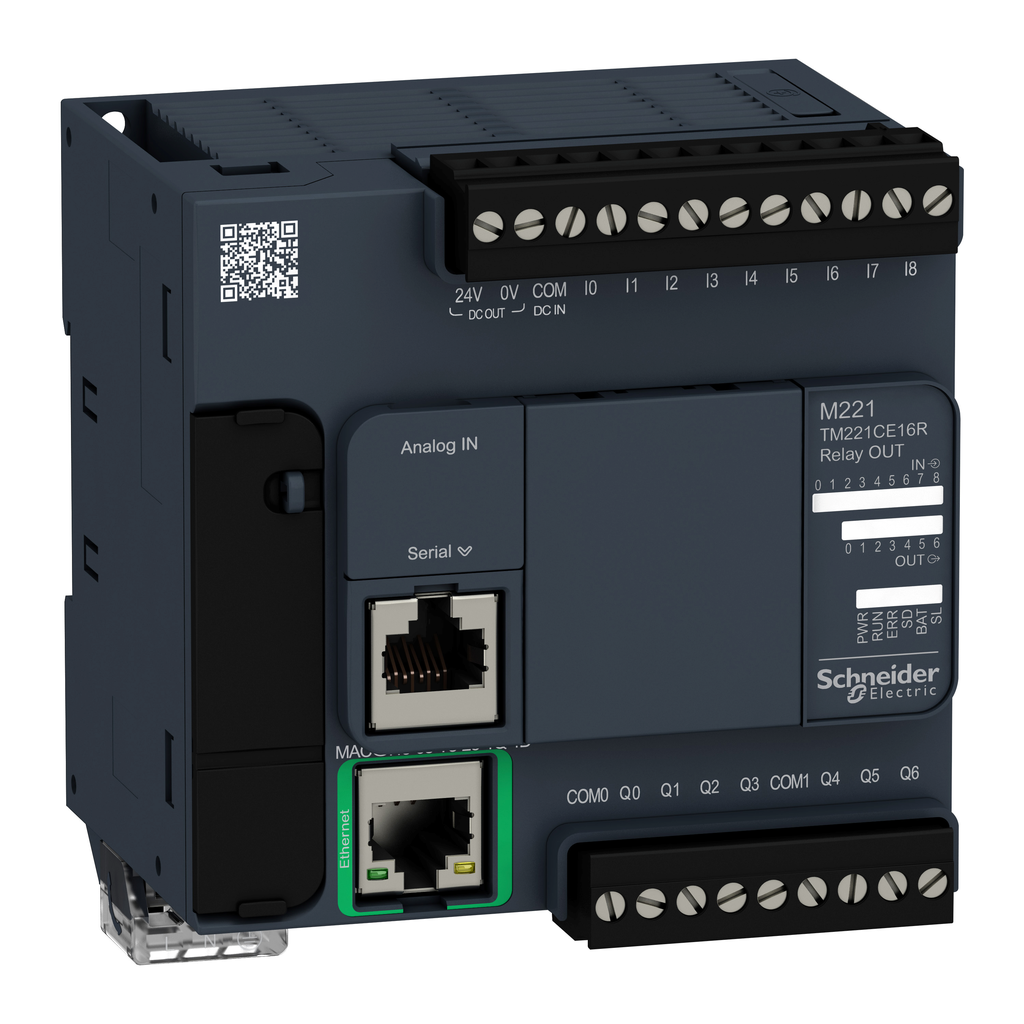

Schneider Electric TM221CE16R is a logic controller from the Modicon M221 range. It is designed for hardwired architectures and supports various input and output configurations.

• Nine discrete inputs and seven relay outputs
• Rated voltage range of one hundred to two hundred forty volts AC
• Supported storage of two gigabytes on SD card

Product Highlights

This module supports simple installation and flexibility in application. It features a USB port, RS232/RS485 interface, and Ethernet connectivity ensuring easy integration into existing systems.

Product Information

Standard Information

• Catalog Number: TM221CE16R
• Manufacturer: Schneider Electric

Technical Specifications

• Power Supply: 24 V DC
• Output Signal: 5 to 125 V DC, 5 to 250 V AC (relay normally open)
• Weight: 0.346 kg
• Dimensions: 95 mm x 70 mm x 90 mm
• Network Frequency: 50/60 Hz
• Internal Memory: 256 KB for program storage
• Operating Temperature: -10 to 55 degrees Celsius
• Certifications: CE, RCM, UL, CSA, EAC
