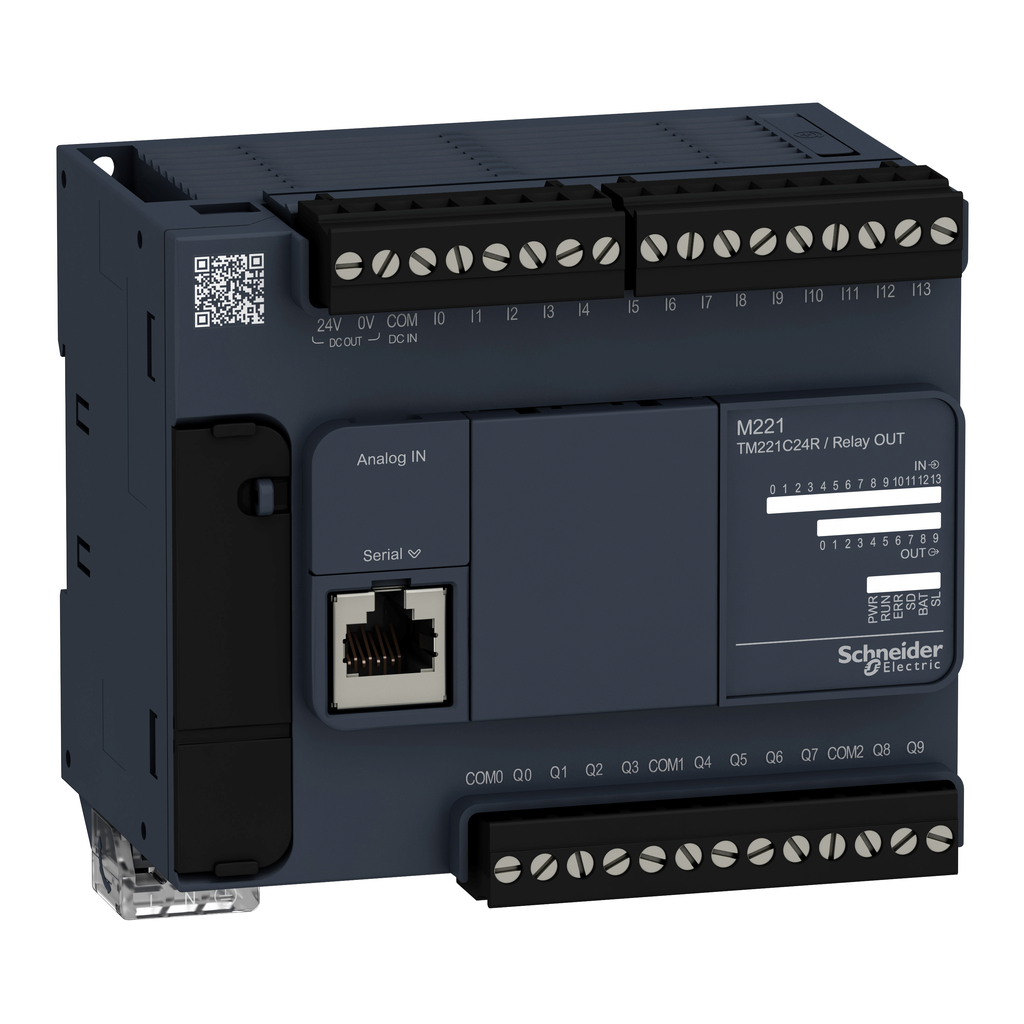

Schneider Electric TM221C24R logic controller Modicon 24 IO relay

Product Description

Schneider Electric TM221C24R is a logic controller from the Modicon M221 series designed for hardwired applications. This controller features fourteen discrete inputs and ten relay outputs with a ten-bit input resolution. It operates on an input voltage range of one hundred volts to two hundred forty volts AC and delivers output voltage options of five volts to one hundred twenty-five volts DC or five volts to two hundred fifty volts AC. Its output current is rated at two amps, accommodating both sink and source input logic.

This logic controller integrates various connections, including a USB port with a mini-B USB 2.0 connector, and supports two serial links, both with RJ45 connectors—one for RS485 and another for RS232/RS485 interfaces. The TM221C24R offers a network frequency of fifty to sixty hertz, and the memory comprises two hundred fifty-six kilobytes for internal variables, user applications, and data RAM, along with built-in flash memory of two hundred fifty-six kilobytes and an SD card capacity of two gigabytes. The unit has an IP20 rating and is suitable for DIN rail installation.

Its dimensions are one hundred ten millimeters in width, seventy millimeters in depth, and ninety millimeters in height, with a total weight of zero point three nine five kilograms. The product complies with several standards including CE, IACS E10, RCM, and CSA, and it's certified under EN/IEC standards. The TM221C24R is ideal for enhancing operational efficiency in industrial automation and control environments.

• Supports 14 discrete inputs and 10 relay outputs
• Rated for 100V to 240V AC power supply
• Integrated USB and RJ45 connectivity options

Product Highlights

Offers reliable performance and versatility for various automation tasks.

Product Information

Standard Information

• Catalog Number: TM221C24R
• Manufacturer: Schneider Electric

Technical Specifications

• Depth: 2.76 inches
• Width: 110 mm
• Height: 90 mm
• Net Weight: 0.395 kg
• Power Supply: 100V to 240V AC
• Output Signal: Relay normally open
• Operating Temperature: -10 to 55 degrees C for horizontal installation
• Certifications: CE, CSA, EAC, and others
