Product Description

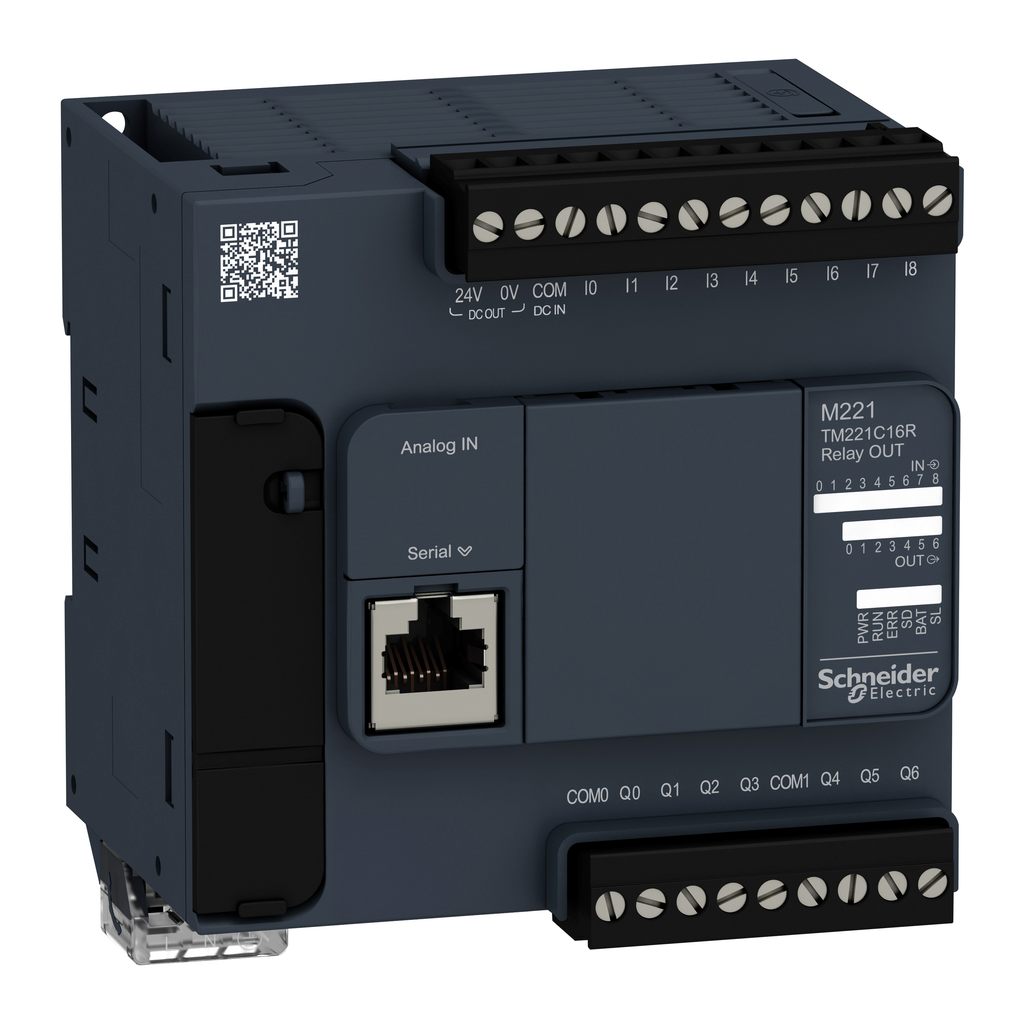

The Schneider Electric TM221C16R is a logic controller designed for hardwired architectures. This model includes nine discrete inputs and seven relay outputs, providing versatility in control applications. It supports a rated supply voltage range from one hundred to two hundred forty volts AC and can output five to one hundred twenty-five volts DC or five to two hundred fifty volts AC. The controller can handle an output current of up to two amperes and is designed for both sink and source input logic.
Installation is straightforward, while the device includes integrated connections such as a USB port with a mini B USB 2.0 connector, non-isolated serial links with RJ45 connectors, and both RS485 and RS232 interfaces. The TM221C16R is IP20 rated and operates effectively at a network frequency of fifty to sixty hertz, making it suitable for various applications in industrial automation.
- Nine discrete inputs and seven relay outputs
- Wide rated supply voltage from one hundred to two hundred forty volts AC
- Integrated USB and serial communication options
Product Highlights
This logic controller is part of the Modicon M221 range, offering easy programming with SoMachine Basic and various ready-to-use applications and function blocks.
Product Information
Standard Information
-
Part Number: TM221C16R
-
Brand: Schneider Electric
Technical Specifications
-
Depth: 2.76 inches
-
Width: 3.74 inches
-
Height: 3.54 inches
-
Weight: 0.76 lb
-
Memory: 256 KB for program
-
Operating Temperature: -10 to 55 degrees C
-
Storage Temperature: -25 to 70 degrees C
-
Certifications: CE, CSA, UL, RCM
