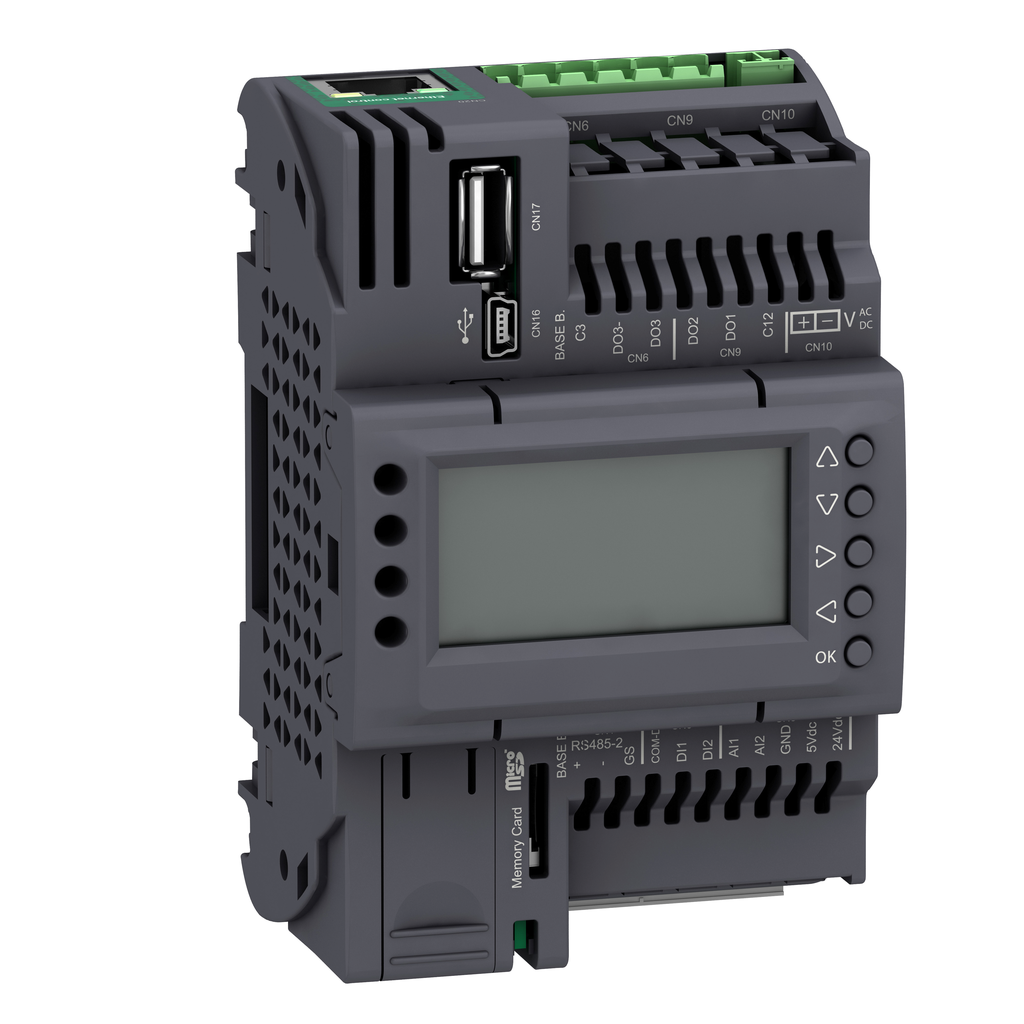

Schneider Electric TM172PDG07R Controller, Mod, 7 IO Module, Replacement MPN

Product Description

The Schneider Electric TM172PDG07R is a programmable controller designed for HVAC applications. This module is part of the Modicon M171/M172 range and features two discrete inputs capable of sinking or sourcing up to 2kHz with a discrete input voltage of twenty-four volts AC or DC and five milliamps. It also offers two configurable, analog inputs grouped by pairs.

• Two discrete inputs for versatile operation
• Compatible with 24V AC/DC voltage standards
• IP20 rated for reliable use in various conditions

Product Highlights

The TM172PDG07R enhances energy efficiency and profitability in HVAC control systems. Its compact dimensions of seventy-two millimeters wide, sixty-point five millimeters deep, and one hundred ten millimeters high make it ideal for installation in tight spaces. The controller is equipped with three programmable LEDs and one power indication LED.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM172PDG07R
• Voltage Input: 24V AC/DC
• Weight: 0.2kg
• Dimensions: 72mm (W) x 60.5mm (D) x 110mm (H)
• Standards Compliance: CE, CSA, RCM, EAC, CURus
• Mounting Type: DIN rail mountable or panel mounting with accessories
• Certifications: IEC 61000-4-2, EN 60068-2-6 Fc
