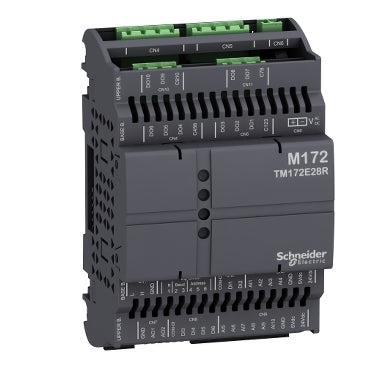

Schneider Electric TM172E28R Expansion Module Modicon M172/M172/M173 28 IO

Product Description

This product is part of the Modicon M171/M172 range providing input/output modules designed for HVAC applications. The TM172E28R module features six discrete inputs with two display logic sink capabilities up to two kilohertz and four additional display positive logic sink inputs. The module operates on a discrete input voltage of twenty-four volts AC/DC with a current rating of two point five milliamps. This module includes ten pair-configurable analog inputs and two programmable analog outputs.

• IP20 rated for robust protection
• Compact dimensions of seventy-two millimeters width by fifty-nine millimeters depth by one hundred ten millimeters height
• Suitable for both DIN rail and panel installations

Product Highlights

The TM172E28R expansion module is suitable for HVAC control and enhances automation processes by maximizing energy efficiency and profitability.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: TM172E28R

Technical Specifications

• Country of Origin: Italy
• Weight: 0.19 kg
• Dimensions: 72 mm x 59 mm x 110 mm
• Input Voltage: 24V AC/DC
• Certification: CE, RCM, EAC, CSA, CURus
• Standards Compliance: IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1, EN 60730-2-9
