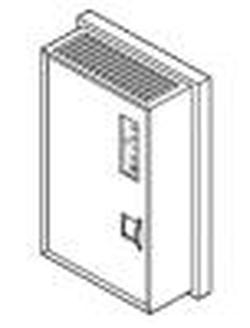

Schneider Electric TK-5001-116-2 Pneumatic One-Pipe Room Thermostat

Product Description

The Schneider Electric TK-5001-116-2 is a direct-acting pneumatic one-pipe room thermostat designed for precise temperature control. It features a Celsius setpoint dial and thermometer for easy adjustments. This thermostat is ideal for HVAC applications, ensuring comfortable indoor climates with minimal energy consumption.

• Supply Air Pressure: 30 psig maximum; 15 psig nominal for single acting.
• Fixed throttling range of 6°F (3.5°C).
• Operational efficiency with a nominal pressure range of 3 to 13 psig (20.7 to 89.6 kPa).

Product Highlights

This thermostat is designed to maintain temperature control effectively within HVAC systems, offering reliable performance and ease of installation.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: TK-5001-116-2

Technical Specifications

• Supply Air Pressure: 30 psig (206.8 kPa) maximum; 15 psig (103.4 kPa) nominal
• Throttling Range: Fixed-6F° (3.5 C°)
• Pressure Range: 3 to 13 psig (20.7 to 89.6 kPa)
• Country of Origin: US
• UPC Code: 7.11E+11
