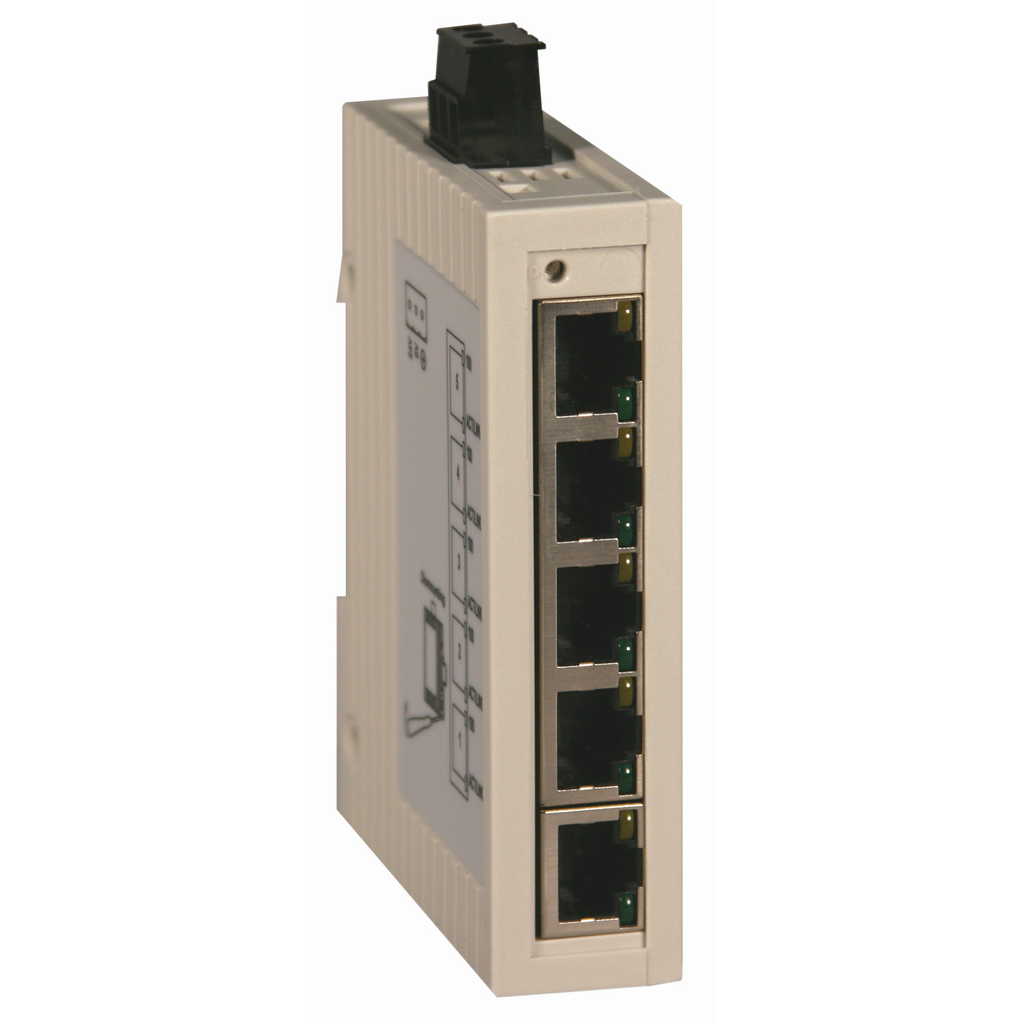

Schneider Electric TCSESU053FN0 Square D 24 Volt 2.2 W RJ45 Shielded Connector 35 mm Din Rail Mount Unmanaged Ethernet Switch

Product Description

The Schneider Electric TCSESU053FN0 is a TCP/IP unmanaged Ethernet switch designed for networking applications. This switch includes five 10BASE-T and 100BASE-TX ports for efficient communication over copper cables. It operates on a supply voltage of twenty-four volts and consumes a power of 2.2 watts. This unit is equipped with a three-way removable connector, enhancing its flexibility and ease of installation.

• Integrated 5 ports for easy network connectivity.
• Supports auto MDI/MDX and 10/100Mbps automatic negotiation.
• IP30 rated enclosure for reliable performance in diverse environments.

Product Highlights

This unmanaged switch simplifies Ethernet integration into various operational settings, making it suitable for industrial communications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Germany

Technical Specifications

• Power Supply: 24 V
• Power Consumption: 2.2 W
• Network Ports: 5 x 10BASE-T/100BASE-TX
• Enclosure Rating: IP30
• Dimensions: 25 mm (width) x 79 mm (depth) x 114 mm (height)
• Weight: 0.113 kg
• Certification: CE, UL, RCM
• Temperature Rating: 32 to 140 F
